Annealing Process Parameters—Time, Temperature, Cooling Rate Explained

Struggling to achieve consistent ductility and finish in your metal products? Incorrect annealing can lead to costly scrap, rework, and missed deadlines. This isn't just a technical failure; it's a direct hit to your bottom line, undermining your reputation for quality and reliability. The solution lies in mastering the three core pillars of the process: temperature, time, and cooling rate.

The key parameters in the annealing process are annealing temperature, which dictates the extent of recrystallization; the soaking time, the duration the material is held at temperature for uniformity; and cooling rate, which governs the final microstructure, hardness, and ductility of the material.

These three variables don't work in isolation; they are a delicate, interconnected system where a slight change in one can drastically alter the outcome. For manufacturers in competitive sectors like automotive or electronics, getting this balance right is non-negotiable. Let’s explore how mastering this trio transforms production from a game of chance to a science of certainty.

The conversation around annealing often simplifies it to just "heating and cooling," but this misses the critical nuance that separates acceptable results from superior ones. The true challenge is in the dynamic interplay between these factors. For instance, a higher temperature might reduce the required soaking time but also risks excessive grain growth, making the material brittle. We recently worked with a client in the stainless steel tubing industry who struggled with inconsistent hardness. Their issue wasn't the peak temperature but their furnace's inability to maintain a uniform cooling rate across the entire batch—a challenge our Bogie Hearth Annealing Furnace is designed to solve. This highlights that parameters are only as good as the equipment's ability to execute them precisely.

What Are the Key Parameters Involved in the Annealing Process?

Are you struggling to pinpoint why your annealed products have inconsistent mechanical properties? The variables seem endless, making troubleshooting a frustrating and costly guessing game. Each failed batch wastes material and energy and erodes confidence in your production capabilities, potentially delaying critical customer shipments. The solution lies in isolating and understanding the three fundamental pillars of annealing.

The key parameters are the maximum temperature reached (annealing temperature), the duration the material is held at this temperature (soaking time), and the speed at which the material is subsequently cooled (cooling rate). These three factors collectively determine the final metallurgical properties of the workpiece.

These three parameters—temperature, time, and cooling rate—are the control levers for any successful heat treatment operation. They are not independent variables but a tightly woven trio where the adjustment of one necessitates the recalibration of the others. For example, in our Bright Annealing Furnaces, we often advise clients that achieving a mirror-like finish¹ on stainless steel isn't just about hitting a high temperature; it's about the precision of the cooling curve under a protective atmosphere. An incorrect cooling rate, even with the right temperature, can lead to oxidation or sensitization, ruining the batch. This interplay is where the art and science of metallurgy meet, and it’s what separates amateur results from professional, repeatable quality. As we delve deeper, we will dissect each parameter, exploring its specific role and how its manipulation can be used to achieve distinct metallurgical goals. Understanding this foundation is the first step toward optimizing your entire heat treatment workflow, reducing defects, and ultimately boosting your bottom line. We will explore how advanced furnace technology provides the granular control needed to master this complex interaction.

The Foundational Role of Annealing Temperature

The annealing temperature is arguably the most critical parameter because it provides the necessary thermal energy to initiate atomic-level changes within the material's crystal structure. Its primary function is to heat the metal above its recrystallization temperature. Below this threshold, only partial stress relief may occur. Once above it, new, strain-free grains begin to form, erasing the effects of cold working and restoring ductility. The specific temperature required varies significantly depending on the alloy. For instance, aluminum alloys may be annealed at around 300-415°C (570-780°F), whereas stainless steels require much higher temperatures, often in the range of 1040-1150°C (1900-2100°F).

Selecting the correct temperature is a matter of precision. If the temperature is too low, the annealing process will be incomplete, leaving the material with residual internal stresses and insufficient softness. This can lead to failures in subsequent forming or drawing operations. Conversely, if the temperature is too high, it can lead to undesirable grain growth. As grains become excessively large, the material can lose toughness and become brittle. In extreme cases, it can even risk incipient melting at the grain boundaries, permanently damaging the material. This precise control is a core focus in our furnace design.

I remember a client, a carbon steel strip processor in India, who was experiencing inconsistent tensile strength and brittleness in their final product. An analysis of their production data revealed that their old furnace had temperature fluctuations of over ±20°C across the heating zone. This lack of uniformity meant some parts of the coil were under-annealed while others suffered from grain growth. After we installed an AKS Bright Annealing Furnace with a high-precision PID control system, they were able to maintain a temperature uniformity of ±3°C. This stability completely eliminated their brittleness issues and improved the consistency of their tensile strength values by over 15%, allowing them to confidently supply to the demanding automotive sector.

Soaking Time: The Period of Transformation

Soaking time refers to the duration the material is held at the designated annealing temperature. Its purpose is twofold: to ensure the entire volume of the workpiece, from surface to core, reaches a uniform temperature, and to allow the metallurgical transformations, like recrystallization and grain growth, to fully complete. This parameter is heavily dependent on the material's thickness and mass. A thin stainless steel strip moving through one of our continuous Mesh Belt Furnaces may only need a few minutes at temperature, whereas a massive, multi-ton steel forging in a Bogie Hearth Furnace might require soaking for many hours.

The relationship between soaking time and temperature is a key consideration for process optimization. In some cases, a slightly higher annealing temperature can reduce the required soaking time, thereby increasing production throughput. However, this is a delicate trade-off that must be carefully managed to avoid the negative effects of excessive temperatures, such as grain growth. The goal is to find the "sweet spot" that ensures complete annealing in the shortest possible time without compromising the material's final properties. This is where process expertise becomes invaluable. We often help our clients develop these optimal time-temperature cycles for their specific products and production goals.

For example, a manufacturer of large-diameter copper coils for industrial wiring approached us. They were using a fixed soak time for all their products, but their thicker gauge coils were failing quality control for having "hard spots." This indicated incomplete annealing. Our engineering team performed a thermal analysis and determined that the heat had not fully penetrated to the core of the thickest coils during the prescribed soak time. We helped them implement a variable soaking schedule based on coil diameter and weight, programmed directly into the control system of their new AKS Bell-Type Annealing Furnace. This simple adjustment ensured complete, uniform annealing for every batch, eliminating defects and improving their overall production efficiency by avoiding costly rework.

Cooling Rate: The Architect of Microstructure

The cooling rate is the final, and often most defining, parameter in the annealing process. It dictates the final microstructure of the material as it cools from the annealing temperature down to ambient temperature. This, in turn, has a direct and powerful influence on its final mechanical properties, especially hardness and ductility. A very slow cooling rate, such as allowing the material to cool down inside the insulated furnace, promotes the formation of a soft, coarse microstructure (like ferrite and pearlite in steels), resulting in maximum softness. A faster cooling rate, like air cooling, results in a finer grain structure and slightly higher hardness.

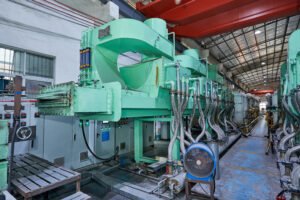

The method of cooling is critical, especially when surface finish is a priority. For a process like bright annealing, where the goal is a clean, oxide-free surface on materials like stainless steel, cooling must occur within a controlled protective atmosphere of gases like hydrogen and nitrogen. Any exposure to oxygen while the material is hot would cause immediate discoloration and scaling, defeating the purpose of the process. Our AKS Bright Annealing Furnaces feature advanced gas-tight cooling chambers with precise atmosphere and flow control, ensuring that products emerge with a brilliant, mirror-like finish, ready for the next manufacturing step without needing secondary cleaning or pickling.

The importance of a controlled cooling profile is paramount. For certain stainless steel grades, it's crucial to cool rapidly through a specific temperature range (e.g., 870°C to 425°C) to prevent sensitization, a phenomenon where chromium carbides precipitate at grain boundaries, reducing corrosion resistance. After passing this critical range, the cooling rate can be slowed to minimize thermal stresses and prevent warping. This multi-stage cooling capability is engineered into our advanced cooling systems. Below is a table illustrating how different cooling rates are used to achieve specific outcomes.

Annealing Type	Typical Cooling Rate	Target Microstructure	Common Application
Full Annealing	Very Slow (Furnace Cool)	Coarse Pearlite, Ferrite	Softening steel for maximum machinability
Process Annealing	Moderate (Air Cool)	Fine Grains, Recrystallized	Restoring ductility in cold-worked parts
Bright Annealing	Controlled Atmosphere Cool	Stress-free, Bright Surface	Stainless steel strips, decorative components
Spheroidizing	Very Slow, with cycling	Spheroidite	Improving formability of high-carbon steel

How Does Each Parameter (Time, Temperature, Cooling Rate) Impact the Process?

Do you find that even with the same material, your annealing results vary wildly from one batch to the next? This inconsistency can be maddening and costly. These unpredictable outcomes lead to rejected parts, production delays, and a reputation for unreliability, directly impacting your profitability. The key is to understand how each specific parameter directly sculpts the material's final properties.

Temperature initiates recrystallization and stress relief, determining the potential softness. Soaking time ensures these changes occur uniformly throughout the material's volume. The cooling rate is most critical for locking in the final microstructure, which directly controls the material's hardness, ductility, and even corrosion resistance.

Understanding the individual impact of these parameters is like a chef learning what salt, heat, and resting time each bring to a dish. Temperature is the primary catalyst for change, initiating the atomic-level restructuring. Time is the enabler, ensuring the process completes thoroughly. And the cooling rate is the final sculptor, locking in the desired microstructure. A change in one dramatically alters the final "taste"—or in our case, the measurable qualities like Rockwell hardness², tensile strength, and grain size. I recall a client producing high-precision electronic connectors from copper alloy strips. They struggled with inconsistent formability, leading to fractures during the high-speed stamping process. The issue wasn't their annealing temperature, which was correct, but an uncontrolled cooling rate in their old furnace. By implementing an AKS continuous annealing line with a defined cooling profile, they stabilized the ductility, reducing their stamping failure rate from 8% to less than 0.5%. This isn't just academic; it's a practical reality that determines success or failure on the factory floor. Let's now delve into the specific, tangible effects of each parameter.

The Impact of Temperature on Microstructure and Stress Relief

The impact of temperature is profound and direct. It acts as the primary driver for all metallurgical changes during annealing. When a metal is heated, the thermal energy allows its atoms to vibrate more intensely and move from their fixed positions in the crystal lattice. When the temperature surpasses the material's specific recrystallization point, it triggers the nucleation and growth³ of new, strain-free grains. This process effectively "resets" the microstructure, erasing the dislocations and internal stresses introduced during cold working processes like rolling, drawing, or stamping. The result is a significant increase in ductility and a reduction in hardness and tensile strength.

The specific temperature chosen has a tangible effect on the final grain size. A temperature just above the recrystallization point will result in a fine-grained structure, which generally offers a good balance of strength and ductility. Pushing the temperature significantly higher will cause these new grains to grow larger. This leads to maximum softness and ductility but often at the expense of tensile strength. We worked with a stainless steel wire producer who needed to fine-tune their product for a high-flexibility medical application. By precisely adjusting the annealing temperature down by just 15°C in their AKS furnace, they were able to achieve a finer grain structure that met the demanding cyclic fatigue requirements, a feat their previous equipment couldn't reliably replicate.

This is why precision is non-negotiable. Our AKS furnaces are equipped with multi-zone heating control systems that use sophisticated PID algorithms. This technology allows us to create extremely stable and uniform temperature profiles along the length of the furnace. For complex parts or wide metal strips, this ensures that every point of the product experiences the exact same thermal cycle, preventing issues like "hot edges" or "cold centers" that lead to inconsistent properties. This level of control allows our clients to operate confidently within the often-narrow processing windows of advanced alloys.

The Influence of Soaking Time on Homogeneity

The impact of soaking time is primarily on achieving thermal and microstructural homogeneity. While temperature initiates the change, time allows that change to be completed thoroughly and uniformly across the entire mass of the workpiece. For a thin component, the time required for the core to reach the surface temperature is short. However, for a thick or heavy component, such as a large die block or a tightly wound coil of steel, heat takes a significant amount of time to conduct from the surface to the center. Soaking ensures this thermal equilibrium is reached, preventing the scenario where the outside is perfectly annealed while the inside remains hard and stressed.

This principle of homogeneity was perfectly illustrated with a manufacturer of large forged components for the mining industry who used one of our large-capacity Bogie Hearth Annealing Furnaces. They were experiencing inconsistent hardness readings on their finished parts, with hard spots being detected deep inside the forgings. Our analysis concluded that their soaking time was insufficient for the component's massive 300mm cross-section. Using thermal modeling software, we calculated the optimal soak time required for the core temperature to equalize and for the microstructure to fully transform. The new, longer cycle eliminated the hard spots entirely, ensuring the components met the stringent safety and performance specifications.

Of course, time is also money. Longer soaking periods directly translate to higher energy consumption and lower overall throughput. This is a critical business consideration. The impact of an optimized soaking time is therefore twofold: ensuring metallurgical quality while managing operational costs. We address this challenge through holistic furnace design. Our systems incorporate superior ceramic fiber insulation, minimized thermal bridging, and advanced waste heat recovery systems. One of our clients in Southeast Asia, a manufacturer of stainless steel cookware, reported a 12% reduction in natural gas consumption per ton of product after upgrading to an AKS furnace. This saving was achieved even after we helped them optimize their soaking cycles to be slightly longer to improve the deep-drawing quality of their material.

How Cooling Rate Dictates Mechanical Properties

The cooling rate has the most dramatic and direct impact on the final mechanical properties of the material, particularly its hardness and strength. This parameter is the architect that solidifies the microstructure developed at the annealing temperature. In ferrous metals like steel, a very slow cooling rate allows carbon atoms ample time to diffuse and form soft structures like pearlite. This is the goal of a full anneal, which produces the softest possible state for maximum machinability. As the cooling rate increases, there is less time for this diffusion, resulting in finer, harder microstructures like bainite or, in the extreme case of quenching, martensite. Thus, by precisely controlling the cooling rate, a manufacturer can effectively dial in the desired hardness and ductility for a specific application.

An analogy I often use is making candy. If you cool molten sugar syrup very slowly, large, orderly sugar crystals have time to form, resulting in soft rock candy. If you cool it almost instantly by pouring it onto a cold slab, the molecules are frozen in place, creating a hard, amorphous solid like a lollipop. The same fundamental principle applies to the arrangement of atoms in a metal's crystal lattice. The final structure is a direct function of the time it's given to organize itself during cooling.

This control is a hallmark of modern heat treatment technology. For example, in our Vacuum Annealing Furnaces, used for highly sensitive aerospace or medical-grade alloys, we can program extremely slow and precise cooling rates under a pure vacuum. This prevents the formation of any unwanted brittle phases and ensures maximum material integrity. In contrast, our continuous Bright Annealing lines for stainless steel strip feature multi-zone cooling chambers. These allow for an initial rapid cool through the sensitization temperature range, followed by a slower, more controlled cool to manage thermal stress and ensure flatness. This ability to create a tailored cooling profile is essential for producing high-quality, high-performance materials.

The following table summarizes the direct impact of each parameter:

Parameter	Effect of Increasing the Parameter Value	Risk of Excessive Increase	AKS Technology Solution for Precise Control
Temperature	Softer material, higher ductility	Excessive grain growth, brittleness, risk of melting	Multi-zone PID control for ±3°C temperature uniformity
Soaking Time	Increased homogeneity, ensures full transformation	Diminishing returns, wasted energy, lower throughput	Advanced thermal modeling & superior furnace insulation
Cooling Rate	Harder material, finer grain structure (if fast)	Thermal shock, warping, formation of brittle phases	Programmatic multi-stage cooling, advanced atmosphere control

What Is the Optimal Balance of These Parameters for Effective Annealing?

Are you constantly adjusting your annealing process, searching for that perfect combination of settings? Finding the "sweet spot" can feel like chasing a moving target. This trial-and-error approach wastes time, energy, and material, directly impacting your production efficiency and profitability. There is a more systematic way to achieve the perfect balance for consistently superior results.

The optimal balance of annealing parameters is not a single universal formula but a specific "processing window" unique to the material grade, its thickness, and the desired final properties. It involves achieving the target temperature for the minimum required soak time, followed by a controlled cooling rate.

Achieving this optimal balance is less about finding a single magic number and more about understanding the intricate relationship within this three-part system. It's a process of strategic compromise. For instance, you might be able to reduce a costly, time-consuming soak period by slightly increasing the annealing temperature, but only if that increase doesn't push the material into a state of detrimental grain growth. This is the engineering challenge we solve daily. For a client producing aluminum strips for deep drawing applications, we helped them identify a processing window where a 10°C temperature increase⁴ allowed them to speed up their line by 15%, significantly boosting throughput without sacrificing formability. This balance is where profitability is forged. It requires a deep understanding of metallurgy, but just as importantly, it requires furnace equipment that can reliably and repeatedly execute the precise parameters you define. Let's explore the practical steps and considerations for identifying and maintaining this crucial equilibrium in your own operations.

Starting with Material Specifications and Metallurgical Principles

The quest for the optimal balance always begins with the material itself. Every alloy has a unique datasheet provided by the manufacturer or governed by international standards (like ASTM or ISO⁵). This documentation is the foundational map, providing critical information like the recrystallization temperature range, recommended annealing temperatures, and potential metallurgical pitfalls, such as sensitization ranges for stainless steels. This is not just reference material; it is the starting point for developing any annealing cycle. Understanding these fundamentals prevents costly initial mistakes. For example, knowing the A1 and A3 critical temperatures for a given carbon steel is essential for defining the correct temperature range for a full anneal versus a process anneal.

From these theoretical starting points, we apply core metallurgical principles. The primary goal is to provide enough thermal energy for recrystallization without initiating excessive grain growth. We also consider the material's thermal conductivity and thickness to estimate the required soaking time. For instance, a tightly wound coil of copper strip will have very different heat transfer characteristics than a single, heavy steel plate, and its soaking time must be adjusted accordingly. This initial phase is about building a scientifically sound hypothesis for the process parameters before ever heating the furnace.

At AKS, we often collaborate with clients at this very stage. A recent project involved a manufacturer in the electronics industry working with a specialized beryllium copper alloy for spring connectors. The material required both high conductivity and excellent spring properties, which are directly tied to the final grain structure after annealing. We worked with their metallurgists, starting from the alloy's phase diagram and technical data. We then used this information to program an initial test cycle in their new AKS Vacuum Annealing Furnace, which is designed for the ultra-clean, precise processing that such advanced materials demand.

The Role of Systematic Testing and Iteration

Theory provides the starting point, but the true optimal balance is almost always refined through systematic, controlled testing. This involves creating a test matrix where one parameter is varied slightly while the other two are held constant. For example, you might run three small batches at temperatures of 1040°C, 1050°C, and 1060°C while keeping the soak time and cooling rate identical. After each run, the resulting material must be rigorously tested for the properties that matter most to the application—be it Rockwell hardness, tensile strength, elongation (ductility), or grain size as observed under a microscope.

This iterative process systematically narrows down the processing window. We guide our clients to document everything meticulously: the furnace settings, the lot number of the material, and the results of the quality control tests. This data becomes an invaluable internal resource for process control. Over time, it builds a clear picture of how parameter adjustments affect the final product. A client producing stainless steel kitchenware used this method to optimize the annealing of 304-grade steel for their deep drawing process. Through a series of documented tests, they discovered that a slightly slower cooling rate than they were previously using resulted in a 5% improvement in elongation, which dramatically reduced splitting failures during their press operations.

This is where the quality of the furnace becomes a critical enabler. If the furnace cannot repeat a cycle with high fidelity, any data collected is meaningless. You won't know if a change in results was due to your parameter adjustment or the furnace's own inconsistency. Our furnace control systems offer the ability to program, save, and precisely execute complex multi-step recipes. This ensures that when you run a test at 1050°C for 30 minutes, you get exactly that—not 1060°C for 28 minutes. This repeatability is the bedrock of effective process optimization.

Leveraging Advanced Furnace Technology for Dynamic Balancing

Modern industrial furnaces are more than just hot boxes; they are sophisticated tools for dynamic process control. The optimal balance is not always static. It can change based on load size, ambient conditions, or even slight variations between batches of raw material. Advanced furnace technology provides the tools to manage this dynamic reality. For example, our furnace PLCs can be integrated with data logging systems that record every aspect of the cycle. This historical data can be analyzed to identify trends and fine-tune recipes over time, moving from a fixed-parameter approach to a responsive, intelligent process.

Furthermore, features like our Waste Heat Recovery system contribute to the balance by managing energy costs. By using hot exhaust gases to preheat combustion air, the furnace uses less fuel to reach and maintain the target temperature. This makes longer soak times or higher temperatures more economically viable if they are required to achieve superior metallurgical results. It changes the economic equation, allowing for a balance that prioritizes quality without incurring prohibitive energy costs. A client in the Middle East operating one of our Bright Annealing lines for steel strips found that our energy-saving system reduced their operating costs enough to justify a slightly longer cycle, which improved their surface finish and gave them a competitive edge.

Ultimately, achieving the optimal balance is a partnership between the user's process knowledge and the equipment's capabilities. A well-designed furnace provides a stable, repeatable platform, precise controls to execute recipes, and efficient operation to make the process economically sound. It transforms the challenge of balancing parameters from a source of frustration into a source of competitive advantage.

Factor to Balance	Parameter 1 Adjustment	Parameter 2 Counter-Adjustment	Desired Outcome & Risk
Throughput vs. Quality	Decrease Soaking Time	Slightly Increase Temperature	Faster cycles; Risk of grain growth if temp is too high
Ductility vs. Strength	Increase Temperature	Use Slower Cooling Rate	Maximum softness; Risk of lower tensile strength
Cost vs. Quality	Use Faster Cooling Rate	(No change)	Lower energy use; Risk of thermal stress or warping
Surface Finish vs. Time	Use Protective Gas Cool	(May require longer cycle)	Bright, oxide-free surface; Higher gas cost/time

How to Evaluate If the Annealing Parameters Are Being Met Correctly?

You've set your annealing parameters, run the cycle, and now you have a batch of finished parts. How do you know if the process was successful? Relying on visual inspection alone is a recipe for disaster. Hidden issues like incorrect hardness or poor microstructure can lead to catastrophic failures down the line. You need robust methods to verify your results.

Correct annealing parameters are evaluated through a combination of mechanical testing (like hardness and tensile tests), metallographic analysis to inspect the microstructure and grain size, and non-destructive examination of the surface finish and dimensional accuracy. These tests confirm the desired properties have been achieved.

Verification is not just a final quality control step; it's a critical feedback loop that informs and validates your entire annealing process. When a hardness test comes back perfect, it confirms that your chosen parameters and your furnace's performance were in sync. Conversely, when a part fails a tensile test, the data points you back toward a specific parameter that needs adjustment. I worked with an automotive component manufacturer whose parts were failing a cyclic fatigue test. A quick look under the microscope at a polished and etched sample revealed an overly large grain structure. This told us immediately that their annealing temperature was too high. This direct link between testing and process parameters is essential for rapid and effective problem-solving. It moves you from guessing what went wrong to knowing precisely where to look. Let's examine the key evaluation methods that provide this crucial insight.

Mechanical Property Testing: The Ultimate Proof

Mechanical testing provides the most direct and quantitative evaluation of an annealing process's success. These tests measure the bulk properties of the material, which are ultimately what matter for its performance in its final application. The most common and crucial test is hardness testing. Using methods like Rockwell, Brinell, or Vickers⁶, this test measures the material's resistance to localized plastic deformation. A correctly annealed part should fall within a specific, narrow hardness range. Readings that are too high indicate incomplete annealing or too rapid cooling, while readings that are too low might suggest excessive grain growth from overheating. It's a fast, inexpensive, and powerful diagnostic tool.

Beyond hardness, tensile testing is another cornerstone of evaluation. A sample of the material is pulled apart until it fractures, and a machine records the force required (tensile strength) and how much it stretched before breaking (elongation or ductility). Successful annealing should lower the tensile strength while significantly increasing the elongation percentage. For any application where the part will be bent, formed, or stretched, this elongation value is a critical measure of success. For example, a supplier of stainless steel strips to the appliance industry must guarantee a certain elongation percentage to ensure the material can be deep-drawn into complex shapes like kitchen sinks without cracking.

At AKS, we always encourage our clients to establish a robust mechanical testing protocol. For one client manufacturing fasteners, we helped them correlate furnace settings on their Mesh Belt Furnace directly to Rockwell hardness readings. They created a simple statistical process control (SPC) chart. By testing a small sample from each batch and plotting the hardness, they could instantly see if the process was drifting out of specification. This allowed them to make minor adjustments to belt speed or temperature proactively, long before a major quality issue could arise, ensuring a consistent and reliable output.

Metallographic Analysis: A Window into the Microstructure

While mechanical tests tell you what the properties are, metallographic analysis tells you why. This technique involves cutting a small sample of the material, mounting it in a polymer, and then grinding and polishing it to a mirror finish. The polished surface is then chemically etched to reveal the boundaries between the metal's individual grains. When viewed under a high-powered microscope, this provides a direct look at the material's internal microstructure. It is the definitive method for confirming the success of the annealing process at an atomic level.

Through metallography, an experienced technician can evaluate several key features. The most important is the grain size and shape. You can visually confirm if recrystallization is complete by looking for new, equiaxed (equally-sided) grains and the absence of the deformed, elongated grains characteristic of cold-worked material. You can also measure the average grain size using standardized charts (like the ASTM E112 standard). This is crucial, as grain size directly influences both strength and toughness. An analysis can also reveal detrimental phases, such as precipitated carbides along grain boundaries in stainless steel, which could lead to corrosion issues.

I recall a case with an export-oriented manufacturer of copper tubing. They were experiencing unexplained failures in the field. Their mechanical tests seemed acceptable, but the problem persisted. We recommended a full metallographic analysis. The images revealed that while the bulk of the material was well-annealed, there were networks of impurities and oxides along the grain boundaries, which their previous, less-controlled annealing process failed to address. By switching to one of our Bell-Type Annealing Furnaces with a pure hydrogen protective atmosphere, they were able to produce a much cleaner microstructure, free of these internal oxides. This "look inside" provided by metallography was the key to solving a problem that mechanical testing alone could not diagnose.

Surface Quality and Dimensional Inspection

The final piece of the evaluation puzzle relates to the physical and aesthetic characteristics of the component. For many products, especially in the consumer goods, automotive, and architectural sectors, the surface finish is a critical quality attribute. For these applications, the goal of annealing is not just to soften the material but to do so without damaging its surface. A successful bright annealing process, for instance, is evaluated by its ability to produce a clean, reflective, oxide-free surface. This is typically assessed visually or with instruments that measure surface reflectivity (gloss). Any sign of discoloration, scaling, or soot is an immediate indicator that the protective atmosphere in the furnace was compromised or the cooling cycle was incorrect.

Equally important is dimensional stability. The heating and cooling cycles of annealing can introduce thermal stresses that cause parts to warp, twist, or otherwise go out of tolerance. Therefore, a post-annealing dimensional inspection using calipers, gauges, or even CMM (Coordinate Measuring Machine) is essential for any precision component. If parts are consistently coming out warped, it points directly to a problem with the cooling rate being too fast or, more often, non-uniform. The advanced cooling systems in our furnaces are designed specifically to mitigate this by providing controlled, even cooling across the entire workload.

We had a client producing large, flat panels from aluminum sheets. Their old furnace caused significant warping, requiring a costly and labor-intensive secondary straightening process. After installing an AKS furnace with a zoned cooling system that directs airflow precisely, they were able to hold a flatness tolerance that eliminated the need for post-annealing straightening altogether. The evaluation was simple: they measured the flatness of every panel. The success of the new process was immediately quantifiable not just in quality metrics but in a 30% reduction in overall processing time for each panel.

Evaluation Method	What It Measures	Why It's Important	Implication of a Bad Result
Hardness Testing	Resistance to indentation	Fast, direct indicator of softness and uniformity	Too hard: Incomplete anneal. Too soft: Overheated.
Tensile Testing	Strength and ductility (elongation)	Confirms formability and strength specifications	Low ductility: Cracking risk. Low strength: Part may fail.
Metallography	Grain size, shape, and phase distribution	Provides root-cause insight into mechanical properties	Large grains: Brittleness. Deformed grains: Incomplete anneal.
Surface Inspection	Color, reflectivity, absence of scale	Critical for aesthetic and corrosion-sensitive parts	Discoloration/scale: Poor atmosphere control in furnace.
Dimensional Check	Warping, twisting, final dimensions	Ensures parts fit and function correctly	Out of tolerance: Non-uniform or overly rapid cooling.

What Recommendations Can Optimize the Annealing Process Parameters?

Are you looking to move beyond just "good enough" and achieve a truly optimized annealing process? Optimization isn't a one-time fix; it's a continuous improvement strategy. Relying on outdated equipment or "tribal knowledge" can leave significant money on the table in the form of wasted energy, low throughput, and inconsistent quality. There are clear, actionable steps to elevate your process.

To optimize annealing parameters, start by thoroughly understanding your material's specifications. Then, conduct systematic, data-driven tests, leverage modern furnace technology with precise control and data logging, and maintain meticulous records to create a robust feedback loop for continuous improvement and efficiency gains.

Optimization is the convergence of science, data, and technology. It's about transforming your heat treatment operation⁷ from a necessary cost center into a source of competitive advantage. The goal is to consistently produce the highest quality product using the minimum amount of time and energy. This means not only defining the perfect cycle but having the ability to execute it flawlessly every single time. I've seen clients achieve remarkable results—like a 20% reduction in cycle time or a 15% drop in energy consumption per ton—simply by applying a structured optimization approach. This isn't about making radical, risky changes. It's about making intelligent, incremental improvements backed by solid data. The recommendations that follow are not just theoretical; they are practical strategies that we have helped manufacturers across the globe implement to enhance their quality, efficiency, and profitability.

Embrace a Data-First Approach: Document Everything

The single most powerful recommendation for optimization is to adopt a rigorous, data-first mindset. Every aspect of the annealing process should be treated as a quantifiable data point. This begins with the incoming material: document the supplier, the specific heat or lot number, and any certification data provided. Within the process itself, the furnace control system should log the precise parameters for every single run: the temperature setpoints and actuals for each zone, the soaking time, the cooling profile, and the composition and flow rate of any protective atmosphere gases. ly, the results of all quality control tests—hardness, tensile strength, metallography—should be directly linked back to the specific batch they came from.

This creates a powerful database that serves as the foundation for all optimization efforts. When a problem arises, you have a historical record to analyze for clues. More importantly, this data allows you to perform statistical analysis to identify subtle trends that would otherwise be invisible. You might discover, for example, that a specific grade of steel from one supplier requires a slightly longer soak time than the same grade from another to achieve the same hardness. This level of insight is impossible without meticulous record-keeping.

We recently helped a large-scale processor of carbon steel strips implement such a system. They integrated the data logger from their new AKS continuous annealing line⁸ with their existing quality management software. By analyzing six months of production data, they identified the optimal line speed and temperature profile for each of their top five products. This data-driven schedule, which replaced their old system of using the same general settings for everything, led to a significant reduction in variability and a 5% increase in prime yield, adding a substantial amount to their bottom line.

Leverage Modern Furnace Technology and Automation

You cannot optimize what you cannot control. Trying to fine-tune an annealing process with outdated equipment that has poor temperature uniformity or manual controls is an exercise in frustration. Investing in modern furnace technology with advanced automation and control is a fundamental prerequisite for optimization. A modern furnace provides the precision and repeatability needed to execute the optimized parameters you develop. Features that were once considered luxuries are now essential for competitive manufacturing. This includes multi-zone PID temperature control for uniformity, programmable logic controllers (PLCs) for saving and executing complex recipes, and automated atmosphere control systems.

Automation goes beyond just executing a cycle. It provides consistency that is simply not achievable with manual operation. An automated system ensures that every batch is run with the exact same parameters, eliminating the human variability that can creep in between different shifts or operators. Furthermore, modern furnaces are designed with efficiency in mind. At AKS, our focus on energy-saving systems, such as advanced insulation, gas-to-air ratio control for complete combustion, and waste heat recovery, is a core part of process optimization. These technologies directly reduce the operational cost of each cycle, making it more feasible to run an ideal cycle rather than one that is cut short to save on fuel.

Consider the case of a European manufacturer of automotive exhaust components. Their older furnaces were costing them a fortune in natural gas and produced inconsistent surface finishes. By upgrading to an AKS Bright Annealing Furnace⁹, they gained two key advantages. First, the automated control system ensured every part received the identical thermal treatment, improving quality. Second, the built-in waste heat recovery system, which uses hot exhaust to preheat combustion air, cut their gas consumption by 18%. The technology didn't just optimize the metallurgy; it optimized the entire business case for their heat treatment operation.

Implement a Continuous Improvement Cycle (Plan-Do-Check-Act)

Optimization is not a destination; it's an ongoing process. The most successful manufacturers embrace a culture of continuous improvement, often formalized in a Plan-Do-Check-Act (PDCA) cycle. This framework provides a simple yet powerful structure for making iterative improvements. Plan: Identify an opportunity for optimization. For example, "Can we reduce the cycle time for Product X by 10% without affecting quality?" Form a hypothesis based on your data and metallurgical principles (e.g., "By increasing the temperature by 10°C, we believe we can shorten the soak time"). Do: Execute a small-scale, controlled experiment based on your plan. Run a test batch with the new parameters.

Check: Meticulously measure the results. Perform all the necessary mechanical and metallographic tests on the test batch and compare them against the baseline standard and your initial goals. Did you successfully reduce the cycle time? What was the impact on hardness, ductility, and grain size? Act: If the results are positive, standardize the new process and update your documentation. If the results are negative or mixed, analyze the data to understand why it didn't work, and use that learning to inform the next "Plan" stage. This creates a closed-loop system where every experiment, whether successful or not, contributes to a deeper understanding of the process.

This disciplined approach removes guesswork and replaces it with a scientific method for improvement. It fosters collaboration between operators, engineers, and quality control teams. We actively support our clients in this journey, not just by providing the furnace but by offering the technical support to help them plan and interpret their experiments. An optimization journey that begins with a 5% energy reduction can, over several PDCA cycles, lead to transformative gains in throughput, quality, and overall operational excellence.

Recommendation Area	Actionable Step	Key Benefit	AKS Feature Support
Data Management	Log all process parameters and QC results for every batch.	Enables data-driven decisions and root cause analysis.	Integrated PLC with data logging capabilities.
Technology	Upgrade to furnaces with precise, automated controls.	Guarantees repeatability and process stability.	PID multi-zone control, advanced PLC recipe management.
Energy Efficiency	Analyze and target energy consumption per cycle.	Reduces operational costs, improving profitability.	Waste Heat Recovery, superior insulation, efficient burners.
Process Culture	Implement a formal continuous improvement cycle (PDCA).	Fosters systematic, incremental optimization over time.	Technical support for process development and testing.

Conclusion

Mastering the interplay of temperature, time, and cooling through precision equipment is not just a technical goal. It is a core business strategy for achieving superior quality, operational efficiency, and sustained profitability in the competitive landscape of metal processing and manufacturing.
