Bright Annealing of Stainless Steel Strip: A Complete Guide

Struggling with dull, oxidized stainless steel strip after heat treatment can significantly impact your product quality and customer satisfaction, potentially leading to costly rework. I understand these challenges well. This guide will illuminate the path to achieving a flawless, mirror-like finish consistently.

Bright annealing is a specialized heat treatment process conducted within a controlled atmosphere, typically hydrogen or a nitrogen-hydrogen mixture¹. It serves to soften stainless steel and restore its ductility without causing surface oxidation, resulting in a clean, bright finish essential for numerous high-value applications.

Achieving that perfect bright finish isn't just about the furnace; it’s a meticulous process from start to finish, demanding attention to detail at every stage. If you're looking to master this technique, enhance your product quality, and reduce post-processing costs, you've come to the right place. I'm excited to share insights gained from years of experience at AKS Furnace, helping clients like you.

The preference for bright annealing, especially for stainless steel, stems from its ability to produce a final product that often requires no further pickling or polishing, saving both time and resources. While setting up a controlled atmosphere furnace involves initial investment and operational diligence, the long-term benefits in product quality, reduced scrap, and elimination of harsh chemical treatments often outweigh the costs. For instance, a client of ours in the high-end kitchenware sector, manufacturing items from 304 stainless steel, previously used conventional annealing followed by extensive mechanical polishing and chemical pickling. After transitioning to one of our AKS Bright Annealing Furnaces, they reported a 20% reduction in finishing costs and a significant improvement in the consistency of the surface lustre, which was crucial for their brand image. This shift also improved their environmental footprint by minimizing chemical waste. At AKS, we’ve engineered our furnaces specifically to optimize these benefits, focusing on precise atmosphere control and energy efficiency, because we understand that for many industries, from automotive components to precision electronics, the quality of the annealed surface is paramount.

Step 1: Preparing the Stainless Steel Strip for Annealing

Are your stainless steel strips entering the annealing furnace with contaminants that sabotage the final bright finish? Oils, grease, and even microscopic dirt can lead to surface defects and inconsistent results. Proper pre-cleaning is the non-negotiable first step for a flawless bright annealed product.

Preparing stainless steel strip for bright annealing involves meticulous cleaning to eliminate oils, grease, dirt, and other surface contaminants. This crucial step ensures uniform heat treatment and prevents surface defects, thereby achieving the desired bright, oxide-free finish critical for product quality.

Many in the industry, perhaps surprisingly, overlook the profound impact of this initial stage, sometimes assuming the furnace's high temperatures will simply "burn off" any surface impurities. However, my experience has consistently shown this to be a costly misconception. Residual contaminants don't just disappear; they react. They can react with the delicate furnace atmosphere, with the furnace components like the muffle or heating elements, or directly with the stainless steel surface itself. These reactions can manifest as carburization, leading to brittleness, or decarburization², resulting in a soft surface, or simply as stubborn stains and a disappointingly dull finish.

I recall a specific instance with a new client, a dynamic company manufacturing stainless steel components for architectural applications. They had invested in a state-of-the-art AKS Bright Annealing Furnace, expecting pristine results for their AISI 316L strips. Yet, they were plagued by intermittent patches of discoloration. During our collaborative troubleshooting, we traced the issue not to the furnace, which was performing perfectly, but to their pre-cleaning line. They were using an alkaline cleaner, but its concentration had depleted over time, and their rinsing stage wasn't effectively removing all residues. Small amounts of drawing lubricant were still present on the strip surface. Once they implemented a stricter monitoring regime for their cleaning baths and upgraded their multi-stage rinsing system with high-purity water, the improvement was immediate and dramatic. Their architectural panels now boast the consistent, brilliant finish their customers demand. This underscores that the foundation for successful bright annealing is laid well before the strip ever sees the inside of a furnace; it's built on impeccable cleanliness.

The significance of surface cleanliness in bright annealing cannot be overstated; it is the bedrock upon which a successful outcome is built. Any oversight at this stage will invariably manifest as a defect in the final product, potentially leading to costly rejections, rework, or, at worst, compromised performance in the end-use application. The journey to achieving that perfect, mirror-like finish truly begins with a meticulously prepared surface, free from any foreign materials that could interfere with the delicate interplay of heat and atmosphere within the furnace.

The Critical Role of Surface Cleanliness

Surface contaminants on stainless steel strip, such as rolling oils, lubricants, drawing compounds, metallic fines from slitting operations, dust, and even fingerprints, are insidious enemies of the bright annealing process. During heating, these residues can decompose, vaporize, and react with the stainless steel surface or the protective furnace atmosphere. For example, carbonaceous residues from oils can lead to carburization, making the steel harder and more brittle, or they can create unsightly soot deposits. If chloride-containing compounds are present, they can cause pitting corrosion even within the furnace. These contaminants also act as a barrier, preventing the protective atmosphere from effectively reaching the steel surface, which can result in localized oxidation and a non-uniform finish.

Beyond direct impact on the strip, vaporized contaminants can redeposit on cooler parts of the furnace, including the muffle, heating elements, and gas inlet/outlet ports. Over time, these deposits can degrade furnace performance, necessitate more frequent and costly maintenance, and even become a source of contamination for subsequent batches. At AKS, we often counsel clients, particularly those in sensitive industries like medical device manufacturing or food processing equipment, that even residues that seem minor can have significant repercussions. For instance, a client producing fine stainless steel wire (AISI 304L) for weaving medical meshes found that trace amounts of wire drawing lubricant, invisible to the naked eye, were causing microscopic inconsistencies in the annealed wire's surface, impacting subsequent coating adhesion. Implementing a more rigorous ultrasonic cleaning protocol resolved this challenge.

The fundamental principle is that the protective atmosphere in a bright annealing furnace, typically very dry hydrogen or a nitrogen-hydrogen mix, is designed to reduce any existing thin oxide layers and prevent new ones from forming on a clean metal surface. If that surface is masked by oil or dirt, the atmosphere cannot do its job effectively. The result is often a product that falls short of the "bright" specification, leading to either outright rejection or the need for costly and often environmentally challenging post-annealing cleaning processes like pickling, which bright annealing is intended to avoid. Therefore, investing in a robust and well-maintained pre-cleaning system is not an expense but a crucial investment in quality and efficiency.

Effective Cleaning Methods and Solutions

To achieve the requisite level of cleanliness, various methods can be employed, often in combination. Alkaline cleaning is a widely used and effective method for removing organic soils like oils and greases, as well as inorganic particulate matter. This process involves immersing the strip in a heated aqueous solution containing alkaline salts (e.g., sodium hydroxide, silicates, phosphates) and surfactants. The heat and chemical action saponify fats and emulsify oils, lifting them from the surface. Critical parameters include solution temperature (typically 60-90°C), concentration, and immersion time, which must be optimized for the specific type and amount of soil. Regular monitoring and replenishment of the cleaning bath are vital to maintain its efficacy.

For more stubborn or specialized contaminants, or where water-based cleaning is less suitable, solvent degreasing might be employed. This can range from wiping with solvents to using vapor degreasing systems with chlorinated or hydrocarbon-based solvents. While effective, environmental regulations and worker safety concerns have led to increased scrutiny and a shift towards more eco-friendly solvent options or alternative cleaning technologies. Electrolytic cleaning, an enhanced form of alkaline cleaning, can be particularly effective for removing tenacious soils or smut. Here, the stainless steel strip is made an electrode (anode or cathode, or alternating) in an electrolyte solution, and the passage of electric current generates gas bubbles at the surface, providing a scrubbing action that dislodges contaminants.

Regardless of the primary cleaning method, thorough rinsing is paramount. Multi-stage rinsing, often starting with reclaimed water and finishing with high-purity deionized or reverse osmosis water, is crucial to remove all traces of cleaning chemicals and dislodged soils. Any residual cleaning agents can themselves become contaminants in the furnace. Finally, the strip must be completely dried before entering the annealing furnace. Methods include hot air blowers, infrared dryers, or wringer rolls. Incomplete drying can lead to water spots or, worse, introduce moisture into the furnace atmosphere, raising the dew point and promoting oxidation. A client of ours manufacturing precision stamped parts from 430 stainless steel for appliance trim initially struggled with faint water stains appearing after annealing. We helped them optimize their hot air knife drying system, increasing air velocity and temperature, which completely resolved the issue, ensuring a consistently brilliant and unblemished finish.

Verification of Cleanliness and Process Control

Ensuring the strip is sufficiently clean before it enters the furnace requires more than just implementing a cleaning process; it necessitates verification and ongoing process control. While visual inspection under good lighting can identify gross contamination, it's often insufficient for detecting thin films of oil or residue. A common and effective shop-floor method is the "water break test." A clean surface, being hydrophilic, will hold a continuous film of water. If the water beads up or breaks, it indicates the presence of hydrophobic contaminants like oil. This simple test, when performed correctly, can be a good indicator of surface cleanliness.

For more critical applications, or when troubleshooting, more sophisticated analytical techniques might be employed, though these are typically lab-based. These can include surface tension measurements (e.g., using dyne pens), Fourier Transform Infrared Spectroscopy (FTIR) to identify organic residues, or X-ray Photoelectron Spectroscopy (XPS) for detailed surface elemental analysis. However, for most industrial bright annealing operations, consistent execution of a well-designed cleaning process, coupled with regular monitoring of cleaning solution parameters (e.g., pH, concentration, oil loading, temperature) and routine water break tests, is usually sufficient.

Process control also involves maintaining the cleaning equipment itself. Filters need to be changed, tanks cleaned of sludge, and nozzles kept clear. Studies in the field have shown that residual surface carbon levels from oils should ideally be below 5-10 mg/m²³ to prevent issues like sooting or atmosphere contamination in sensitive bright annealing processes. Achieving and consistently maintaining such low levels requires a robust cleaning system and diligent process control. For example, a major stainless steel strip processor we work with uses automated titration systems to monitor their alkaline cleaner concentration and conductivity sensors in their rinse tanks to ensure rinse water purity, all logged as part of their ISO 9001 quality management system. This level of control is key to their consistent production of high-quality bright annealed strip.

Cleaning Method	Effectiveness (Oils)	Effectiveness (Particulates)	Relative Cost	Environmental Impact	Speed	Typical Application
Alkaline Cleaning	High	Moderate to High	Medium	Moderate (wastewater)	Medium	General purpose, most common oils & light soils
Solvent Degreasing	Very High	Low to Moderate	Medium-High	Varies (VOCs concern)	Fast	Heavy oils, specific greases, quick cleaning
Electrolytic Clean	Very High	High	High	Moderate (wastewater)	Medium-Fast	Stubborn soils, smut removal, high cleanliness
Ultrasonic Cleaning	High (with solution)	High	High	Low to Moderate	Medium	Precision parts, complex geometries

Step 2: Configuring the Annealing Furnace for Optimal Conditions

Is your bright annealing furnace set up correctly, or are you essentially guessing settings and hoping for the best outcomes? Incorrect temperature, atmosphere, or strip speed can lead to under-annealing, over-annealing, or detrimental oxidation⁴, ultimately ruining your material and wasting valuable energy.

Configuring the annealing furnace involves setting precise parameters: temperature suitable for the stainless steel grade, a protective atmosphere (e.g., pure hydrogen, nitrogen-hydrogen mix) with an extremely low dew point⁵, and appropriate strip speed to ensure complete recrystallization without surface oxidation.

Once your stainless steel strip is impeccably clean, the next pivotal phase is the meticulous preparation and configuration of the bright annealing furnace itself. This is far more involved than simply powering on the equipment; it's about creating and stabilizing a highly controlled internal environment where the transformative process of bright annealing can occur flawlessly. I often liken this to a highly skilled artisan preparing their specialized tools and workshop before commencing a masterpiece – every single element must be in perfect harmony and precisely calibrated.

I recall a challenging but rewarding project with a client who manufactures precision stainless steel tubes (AISI 316Ti) for the aerospace industry. They were experiencing intermittent issues with achieving the required full softness and brightness, despite using one of our advanced AKS muffle furnaces. Their temperature settings were, on paper, correct for the grade. However, a detailed process audit revealed that their protective atmosphere (cracked ammonia) delivery system had a very slow response to flow adjustments, and the dew point sensor was positioned too far downstream from the critical heating zone. This meant that during slight process variations, such as changes in strip speed for different tube dimensions, the atmosphere quality within the hottest part of the furnace wasn't always optimal. By relocating the dew point sensor for faster feedback and upgrading their gas mixing and flow control system for better responsiveness, along with implementing stricter furnace integrity checks, they achieved the consistent metallurgical properties and brilliant surface finish demanded by their stringent aerospace specifications. This experience reinforces that furnace configuration is a delicate balancing act, a symphony of multiple interconnected parameters. Each setting, from the detailed temperature profile across multiple zones to the exact composition, purity, and flow rate of the protective atmosphere, plays an indispensable role in achieving that coveted bright, oxide-free surface.

The journey to a perfectly bright annealed stainless steel strip continues into the heart of the operation – the furnace. Configuring this critical piece of equipment correctly is not just a preliminary step; it's an ongoing aspect of process control that dictates the success or failure of each annealing run. At AKS Furnace, we design our equipment with precision control in mind, but optimal performance always relies on the user's understanding and diligent application of correct configuration principles.

Mastering Temperature Profiles

The temperature profile within the annealing furnace is arguably the most critical parameter. It must be tailored precisely to the specific grade of stainless steel being processed and the desired metallurgical outcome. Austenitic stainless steels (like 304, 316) typically require annealing temperatures between 1050°C and 1150°C (1920°F to 2100°F) to achieve full recrystallization and dissolve chromium carbides. Ferritic grades (like 430) are annealed at lower temperatures, generally in the range of 780°C to 900°C (1435°F to 1650°F), while martensitic grades (like 410) require specific annealing cycles that might include hardening and tempering stages, though bright annealing is more commonly associated with austenitic and ferritic types for softness and brightness.

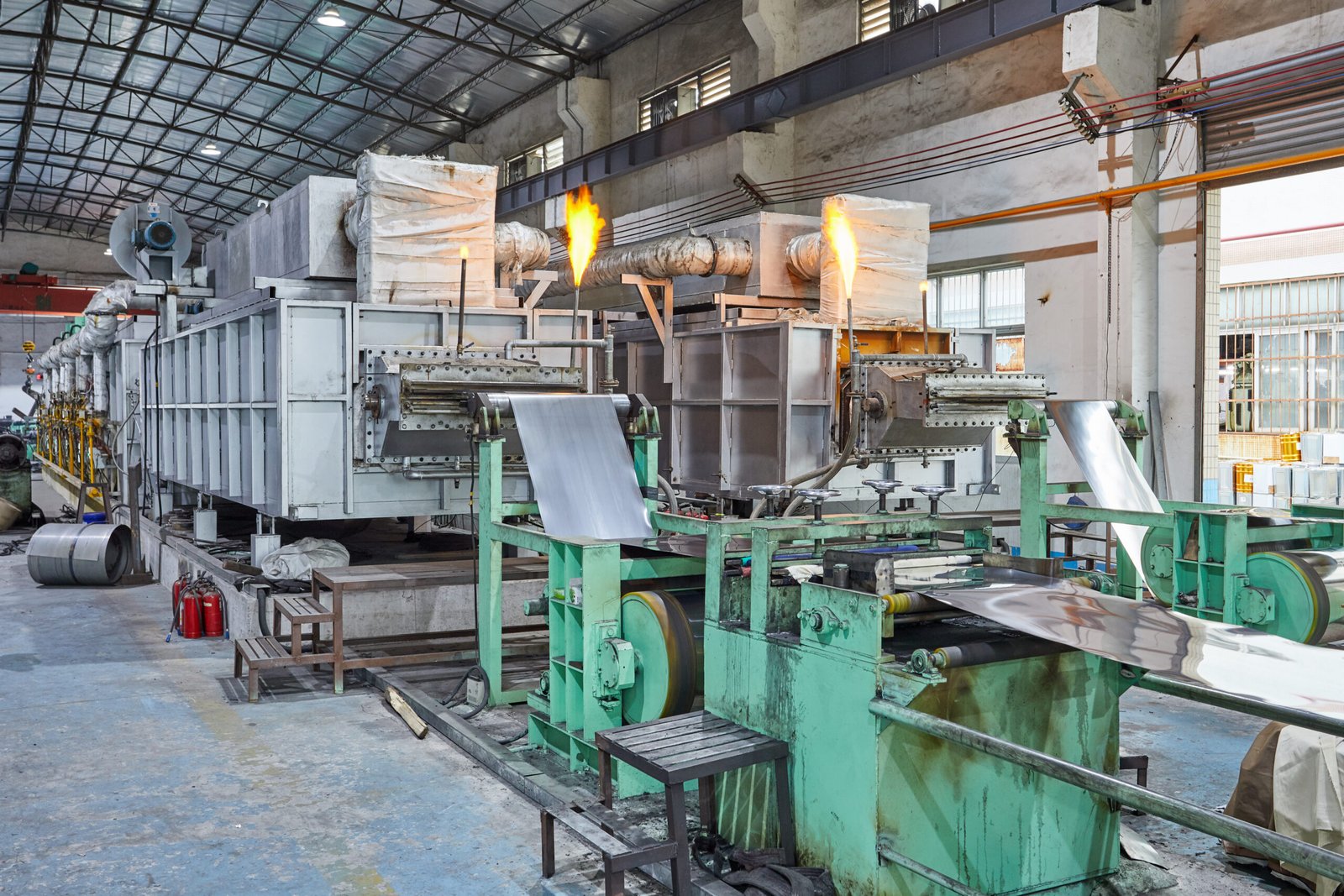

Modern continuous bright annealing furnaces, like those we manufacture at AKS, typically feature multiple heating zones. These zones allow for a carefully controlled ramp-up to the soaking temperature, a uniform holding period at that temperature, and then the beginning of controlled cooling. Temperature uniformity across the width of the strip and along the length of the soaking zone is vital. Non-uniformity can lead to inconsistent mechanical properties and variations in brightness. Thermocouples, strategically placed and regularly calibrated, are essential for accurate temperature measurement and control. We typically use Type K or Type N thermocouples for the lower range and Type R or S for higher temperatures, ensuring they are sheathed appropriately for the furnace atmosphere. The risks of incorrect temperatures are significant: under-heating results in incomplete recrystallization, leaving the steel harder than desired and potentially with residual stresses. Over-heating can lead to excessive grain growth, which can impair formability and toughness, or in the case of unstabilized austenitic grades, can lead to sensitization if cooling is not rapid enough through the critical range (though this is less of a concern in bright annealing's controlled cooling). For example, a client processing thin gauge AISI 301 full hard strip for spring applications requires precise partial annealing to achieve a specific temper. For them, maintaining temperature within a very narrow ±5°C window in the soak zone is critical, a capability our multi-zone PID controlled furnaces readily provide.

Achieving and Maintaining the Protective Atmosphere

The "bright" in bright annealing comes directly from the effectiveness of the protective atmosphere in preventing any oxidation or other surface reactions during the high-temperature exposure. The most common atmospheres used are pure dry hydrogen, dissociated ammonia (a mixture of 75% hydrogen and 25% nitrogen by volume, obtained by "cracking" anhydrous ammonia), or blends of nitrogen and hydrogen. Pure hydrogen offers the highest reducing potential and typically yields the brightest surface, making it ideal for high-value applications like surgical instruments or decorative trim. Nitrogen-hydrogen mixtures (e.g., 5-25% H2 in N2) are often used as a more economical and safer alternative, particularly for less critical applications or for stainless steel grades that are less prone to oxidation. Dissociated ammonia is also a common choice due to its relatively low cost of generation, though impurities in the ammonia feedstock must be carefully controlled.

The single most important characteristic of the protective atmosphere is its dew point, which is a measure of its moisture content. A low dew point signifies very dry gas and, consequently, a very low oxygen partial pressure. For effective bright annealing of stainless steels, particularly those with high chromium content, the dew point inside the furnace should typically be maintained below -40°C (-40°F), and ideally at -60°C (-76°F) or even lower. Achieving such low dew points requires using high-purity source gases, ensuring the furnace (especially the muffle, if used) is exceptionally leak-tight, and implementing rigorous purging procedures before heating and introducing the strip. Gas flow rates must be sufficient to maintain a positive pressure inside the furnace, preventing air ingress, and to effectively sweep away any outgassed impurities from the strip. When using hydrogen or hydrogen-rich mixtures, comprehensive safety systems are paramount. These include flame curtains or burn-offs at gas outlets, emergency nitrogen purge systems, hydrogen leak detectors, and proper ventilation. At AKS, safety is integral to our furnace design; for example, our hydrogen atmosphere furnaces incorporate multiple layers of safety interlocks. The thermodynamic basis for this is clearly shown by Ellingham diagrams⁶, which predict that to prevent the formation of chromium oxide (Cr2O3) at typical annealing temperatures of 1050-1150°C, the oxygen partial pressure must be exceedingly low, on the order of 10⁻¹⁸ to 10⁻²² atmospheres, corresponding to these very low dew points.

Optimizing Strip Speed and Tension

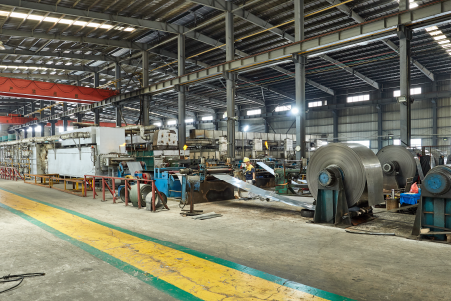

In a continuous bright annealing line, the strip speed is a critical variable that dictates the soaking time – the duration for which any given point on the strip remains within the effective heating (soak) zone of the furnace. This soaking time must be sufficient to allow for complete heat penetration through the strip's thickness and for the necessary metallurgical transformations (recrystallization, dissolution of carbides) to occur. The appropriate speed is calculated based on the length of the furnace's heated zone, the strip thickness, and the specific thermal requirements of the stainless steel grade being processed. Thicker strips or grades requiring longer soak times will necessitate slower speeds.

Strip tension control is equally important. The strip must be under adequate tension to ensure it travels smoothly through the furnace without sagging (which can cause uneven heating or contact with the muffle floor), wrinkling, or excessive catenary (which can affect tracking and thermal exposure). However, excessive tension can lead to stretching or deformation of the strip, especially when it is hot and its yield strength is significantly reduced. Modern bright annealing lines employ sophisticated drive systems, often with multiple bridles or dancer rolls, to provide precise and consistent control over both speed and tension throughout the entire line, from uncoiler to recoiler. For instance, a client of ours processing very thin (0.05 mm to 0.1 mm) and wide (up to 1000 mm) AISI 304 foils for manufacturing flexible metal hoses faced significant challenges with strip stability and wrinkling in their old furnace line. We engineered a new AKS line for them incorporating a non-contact laser speed sensor, advanced PID tension control loops, and strategically placed steering rolls. This resulted in a dramatic improvement in strip stability, leading to more uniform annealing, significantly reduced scrap due to creasing, and the ability to run at higher throughputs. The ability to accurately control speed and tension is not just about material handling; it's fundamental to achieving consistent thermal processing and, therefore, consistent product quality.

Protective Atmosphere	Typical Composition	Brightness Level	Relative Cost	Safety Concerns	Common Use Cases for Stainless Steel
Pure Hydrogen	>99.9% H2	Highest	High	High (flammable)	High-end decorative, surgical, 300/400 series
Nitrogen-Hydrogen Mix	5-75% H2 in N2	Very Good to Good	Medium	Moderate (flammable)	General purpose, 300/400 series, cost-sensitive
Dissociated Ammonia	~75% H2, 25% N2	Very Good	Low-Medium	High (NH3 toxic, H2 flammable)	Widely used, 300/400 series
Vacuum	<10⁻³ mbar	Excellent	Very High	Low (implosion risk)	Specialty alloys, reactive metals, Ti, Zr

Step 3: Executing the Bright Annealing Process

Is the actual bright annealing run fraught with uncertainty, leaving you unsure if the process is proceeding correctly within the furnace? Deviations during this active phase can negate all your careful preparation, potentially leading to scrapped material and costly production delays.

Executing the bright annealing process involves continuously feeding the cleaned stainless steel strip through the pre-configured furnace, maintaining stable temperature zones and protective atmosphere conditions⁷, and ensuring consistent strip movement for uniform heat treatment and desired metallurgical changes.

With the stainless steel strip immaculately clean and the furnace meticulously configured to its optimal operating parameters, we arrive at the dynamic core of the operation: the execution of the bright annealing process itself. This is the stage where all the careful preparation and theoretical understanding converge into practical application. It's far more than just initiating a sequence by pressing a "start" button; it's an active, ongoing phase that demands continuous vigilance, a keen understanding of the dynamic interplay between heat, atmosphere, and the moving material, and readiness to make subtle adjustments as needed.

I often share an experience I had with a large-scale producer of stainless steel welded tubes, primarily AISI 304, used in the food and beverage industry. Their process parameters for their continuous annealing line seemed perfect on paper, and their furnace, one of our robust AKS models, was well-maintained. However, they occasionally produced batches of tubes that, while bright, exhibited insufficient ductility, leading to problems during subsequent bending and flaring operations. By implementing a more comprehensive real-time data logging system and closely monitoring the process during long production runs, we discovered very subtle temperature drops, sometimes only 5-10°C, occurring in the final heating zone. These dips coincided with periods when thicker-walled tubes were being processed at slightly higher speeds, creating a momentary increased thermal load that the control system took a few minutes to compensate for fully. By implementing a more anticipatory (feed-forward) control logic for their SCR-controlled heating elements and slightly adjusting the zone setpoints based on a pre-inputted schedule of material dimensions, we helped them stabilize the thermal profile. This continuous oversight, data-driven analysis, and willingness to adapt are the hallmarks of truly successful and consistent bright annealing execution.

The execution phase is where the meticulously prepared strip and the precisely configured furnace work in concert. It's a continuous operation that requires not just automation but also skilled oversight to ensure that the desired conditions are maintained consistently throughout the entire run, for every meter of stainless steel strip. At AKS, we strive to build furnaces that are both highly automated and transparent in their operation, providing operators with the critical information they need to manage this stage effectively.

Initiating the Annealing Run: Purging and Stabilization

Before any stainless steel strip enters the heated zones of the furnace, the entire furnace muffle or chamber must be thoroughly purged of air, particularly oxygen. This is a critical initial step because any residual oxygen present when the furnace heats up will readily oxidize the strip and can also damage furnace components like metallic muffles or heating elements. The purging process typically involves flushing the furnace with an inert gas, like nitrogen, followed by the introduction of the protective atmosphere (e.g., hydrogen or a nitrogen-hydrogen mix). The volume of purge gas used should be several times the internal volume of the furnace – a common rule of thumb is at least 5 to 10 furnace volumes – to ensure oxygen levels are reduced to a safe minimum, often verified by an oxygen analyzer before proceeding.

Once purging is complete and the protective atmosphere is flowing, it's essential to allow time for the atmosphere to stabilize. This means ensuring that the gas composition is correct and, crucially, that the dew point has reached its target low level⁸ (e.g., below -40°C or -50°C). This stabilization period can take some time, especially in larger furnaces or if there are minor leaks. Many modern furnaces, including those from AKS, incorporate automated purge cycles and atmosphere monitoring systems that will not permit the strip to be introduced or the heating to commence until these conditions are met. If the furnace is being started from a cold state, the temperature ramp-up must also be gradual to prevent thermal shock to refractory linings, ceramic components, or the metallic muffle. Once the furnace is at the correct temperature and the atmosphere is stable, a leader strip (often a less critical material or a dedicated steel leader) is typically threaded through the furnace, followed by the actual production stainless steel strip, which is welded or stitched to the leader. This ensures a continuous and uninterrupted flow. For instance, a client producing precision cold-rolled stainless steel strips for razor blades, where surface finish is paramount, uses an extensive pre-run checklist that includes verifying purge gas volumes, dew point readings at multiple points, and a muffle integrity pressure test before any production material is committed.

Monitoring Key Process Parameters During the Run

Once the bright annealing process is underway, continuous and vigilant monitoring of all key process parameters is absolutely essential for maintaining quality and consistency. This is not a "set it and forget it" operation. The critical parameters include: temperatures in all heating and cooling zones (monitored by calibrated thermocouples), the dew point of the furnace atmosphere (using inline hygrometers), the flow rates of all protective gases (using flowmeters), the composition of the atmosphere (if using gas mixers or analyzers for H2, O2, etc.), the strip speed (measured by tachometers or laser sensors), and strip tension (monitored by load cells or dancer arm positions).

Most modern bright annealing lines are equipped with sophisticated SCADA (Supervisory Control and Data Acquisition) systems⁹ that log all these parameters continuously. This data logging is invaluable for several reasons: it provides real-time insight into the process stability, allows for immediate alerts if any parameter deviates from its setpoint, creates a detailed historical record for quality control and traceability (essential for many industries like automotive or medical), and provides crucial data for troubleshooting any issues that may arise. For example, at AKS, our furnace control systems offer comprehensive data logging and trend analysis capabilities. I recall a client in the electronics sector, manufacturing stainless steel components for connectors, who used this data to pinpoint a recurring issue of slight surface dullness. The logs showed a correlation between the dullness and brief spikes in dew point, which were eventually traced to an intermittently failing valve on their ammonia dissociator. Without detailed logs, identifying such an intermittent fault would have been far more challenging and time-consuming. Visual checks, where possible through properly designed and purged sight glasses, can also provide qualitative feedback on the strip's condition as it passes through different zones, particularly observing the color and brightness in the cooling section.

Managing Process Variables and Troubleshooting Common Issues

Even with the best equipment and careful setup, process variables can sometimes drift during a long production run, or unexpected issues can arise. Operators must be trained to understand the interdependencies of these variables and how to make appropriate, subtle adjustments to maintain optimal conditions. For instance, if the dew point starts to rise, it might indicate an air leak, insufficient gas flow, or a problem with the gas supply. The operator might first try slightly increasing the protective gas flow rate while investigating the root cause. If the strip temperature in a zone begins to drop, it could be due to a failing heating element, an issue with the power controller (e.g., SCR), or an unexpectedly high thermal load from a thicker or wider strip.

Common issues encountered during the run and their potential causes include:

• Oxidation/Discoloration (e.g., blueing, yellowing, dullness): This is the most common issue and is almost always related to a compromised protective atmosphere – air leaks into the furnace, a high dew point (moisture in the gas), insufficient protective gas flow, or contaminated gas.
• Incomplete Annealing (strip too hard, poor ductility): This usually points to either the temperature being too low in the soak zone or the strip speed being too high (insufficient soak time).
• Surface Contamination (soot, stains): This often traces back to inadequate pre-cleaning of the strip or, occasionally, to contaminants being released from furnace refractories or previously deposited residues within the muffle.
• Strip Tracking Problems (strip moving sideways, creasing): This can be due to issues with strip alignment, uneven tension, problems with steering rolls, or furnace roll misalignment.

It's also crucial to have well-defined emergency procedures. For example, in the event of a power failure, an automatic emergency nitrogen purge system should activate to flood the furnace, preventing air ingress and potential explosion if hydrogen is present, while also protecting the hot strip from oxidation. Similarly, procedures for handling a muffle leak or a failure in the protective gas supply are essential. For austenitic stainless steels like AISI 304, the typical annealing temperature range is 1050-1120°C (1922-2048°F). The soaking time at this temperature is critical; while often cited as minutes per mm of thickness for batch annealing, in continuous lines, it translates to the duration the strip spends in the effective hot zone, which could be anywhere from 30 seconds to several minutes depending on the furnace length, strip thickness, and line speed. Any deviation here directly impacts the final properties.

Defect Observed	Potential Cause(s)	Corrective Action(s)
Dull or Matte Surface	High dew point; insufficient H2 in atmosphere; air leaks; low temperature.	Check gas purity/dryness; increase H2%; seal furnace leaks; verify/increase temperature.
Bluish/Yellowish Tint	Mild oxidation during cooling; exit temperature too high; air ingress at exit.	Improve cooling zone atmosphere; ensure strip is cool before exit; check exit seals.
Soot or Black Deposits	Carbon from oils/lubricants (poor cleaning); rich atmosphere (too much hydrocarbon).	Improve pre-cleaning; check atmosphere for contaminants (e.g., from cracked ammonia if incomplete cracking).
Strip Too Hard	Insufficient soak time (speed too high); temperature too low.	Reduce strip speed; increase soak zone temperature; verify thermocouple accuracy.
Excessive Grain Growth	Temperature too high; soak time too long.	Reduce soak zone temperature; increase strip speed (if soak time is excessive).
Surface Scratches	Contact with rough furnace rolls, guides, or muffle; debris on strip.	Inspect/polish/replace furnace components; improve strip cleaning; check for debris in entry/exit accumulators.

Step 4: Proper Cooling Methods to Prevent Oxidation

Are your perfectly annealed strips losing their brilliant shine during the cooling phase due to re-oxidation? Exposing hot stainless steel to air, even momentarily, can tarnish the surface, effectively undoing all your meticulous hard work in the heating stages.

Proper cooling methods for bright annealed stainless steel involve rapidly yet controllably reducing the strip's temperature below its oxidation threshold (typically below 200-300°C or 392-572°F)¹⁰ while it remains strictly under the protective atmosphere, thus preventing any surface reactions with oxygen or moisture.

You've successfully navigated the critical heating phase of the bright annealing process, and the stainless steel strip has undergone its desired metallurgical transformation, achieving softness and internal stress relief. However, the journey to a consistently brilliant, mirror-like finish is not quite over. The cooling stage, which immediately follows the soaking zone, is an equally critical juncture where the success of the entire operation can be definitively cemented, or, if improperly managed, where disaster can strike in the form of re-oxidation. Exposing the still-hot strip – even if it’s perfectly bright at the exit of the heating zone – to ambient air or a compromised atmosphere would instantly lead to the formation of surface oxides, tarnishing that hard-earned brightness and rendering the "bright" annealing process a failure.

I've encountered situations, particularly with older or less sophisticated furnace installations, where an inadequately designed or maintained cooling zone was the clear Achilles' heel of the entire production line. For example, a manufacturer of high-quality stainless steel decorative trim for automotive applications found that while the center of their wider strips (AISI 430 grade) was perfectly bright, the edges sometimes exhibited a faint but unacceptable yellowish or bluish discoloration. A detailed audit, including atmosphere sampling at various points within their extended cooling section, revealed that the protective nitrogen-hydrogen atmosphere was not being effectively maintained throughout the entire length. Minor air ingress was occurring near the strip exit seal, and the gas flow dynamics were insufficient to keep this localized contamination from reaching the still-warm strip edges. By working with them to improve the sealing mechanisms at the furnace exit and by optimizing the protective gas injection points and flow rates within the cooling muffle, we helped them completely eliminate this frustrating edge discoloration issue. This experience powerfully demonstrates that the cooling process demands the same, if not greater, level of atmospheric control and engineering precision as the heating phase.

The transition from the intense heat of the annealing furnace to ambient temperature must be managed with extreme care to preserve the bright, oxide-free surface achieved during heating. This phase is not merely about letting the strip cool down; it's an active, controlled process designed to protect the material during its vulnerable, high-temperature state. At AKS Furnace, a significant portion of our design effort for bright annealing lines focuses on the efficiency and integrity of the cooling section, as we know this is where many potential problems can arise if not properly engineered.

The Science Behind Controlled Cooling

The fundamental reason why controlled cooling is so critical for stainless steel lies in the high affinity of chromium (the key element providing stainless properties) for oxygen, especially at elevated temperatures. While the protective atmosphere prevents oxidation in the heating and soaking zones, the steel remains susceptible as long as it is hot. If exposed to an environment containing oxygen or excessive moisture while still above a certain critical temperature, chromium oxides will rapidly form on the surface, resulting in discoloration and loss of brightness. This critical temperature below which the rate of oxidation becomes negligible in air varies somewhat by stainless steel grade and the specific surface conditions, but it's generally accepted that stainless steel should be cooled to below approximately 200-300°C (392-572°F), and often even lower (e.g., below 150°C or 300°F), before it can be safely exposed to ambient air.

Therefore, the primary objective of the cooling zone in a bright annealing furnace is to reduce the strip temperature below this threshold while maintaining the integrity of the protective atmosphere. This means the cooling section must be just as leak-tight as the heating section, and a positive pressure of the same high-purity, low-dew-point protective gas (hydrogen, N2/H2 mix, or dissociated ammonia)¹¹ must be maintained throughout its entire length. The dew point of the atmosphere within the cooling zone is also of paramount importance; if the gas becomes moist, or if the strip surface cools below the dew point of the surrounding gas, condensation can occur, leading to water staining or even localized oxidation. This is why the protective gas is often recirculated through coolers and dryers before being reintroduced to the cooling zone, or fresh, dry gas is continuously supplied. For clients at AKS processing highly reflective 304 or 430 stainless for applications like mirror-finish panels or appliance facings, we emphasize that the cooling zone is not an afterthought but an integral part of the "bright" process, requiring diligent monitoring of atmosphere purity right up to the exit seal.

Cooling Technologies and Designs

Several technologies are employed to achieve efficient and controlled cooling of the stainless steel strip within the protective atmosphere. One of the most common and effective methods is convection cooling, often referred to as jet cooling or impingement cooling. In this design, the protective gas itself (after being cooled externally) is directed at high velocity onto both surfaces of the moving strip through arrays of specially designed nozzles or plenums. This rapidly removes heat from the strip. The design, spacing, and angle of these jets are critical for achieving high heat transfer coefficients and uniform cooling across the strip width. AKS often incorporates sophisticated computational fluid dynamics (CFD) modeling in designing our jet cooling sections to optimize performance for different strip dimensions and line speeds.

Another widely used approach is the water-jacketed cooling muffle. Here, the strip passes through a sealed muffle (similar to the heating muffle, but unheated) whose outer walls are cooled by circulating water. The strip cools primarily by radiation to the cold muffle walls and by convection to the protective gas contained within the muffle, which in turn is cooled by the muffle walls. This method provides gentle and uniform cooling. Often, a combination of cooling methods is used. For instance, an initial rapid cooling phase using jet coolers might be followed by a longer section of water-jacketed muffle cooling to bring the strip temperature down further in a very controlled manner. The choice of cooling technology depends on factors like the required cooling rate (determined by line speed and strip thickness), the sensitivity of the material to thermal shock, space constraints, and capital/operating costs. For instance, a client processing heavy-gauge stainless steel plates required a very aggressive cooling rate to meet throughput targets. We designed a multi-stage jet cooling system for them using cryogenically cooled nitrogen as the cooling medium in the initial stage, achieving significantly higher heat transfer rates than conventional gas or water cooling. Data from embedded temperature sensors in their line confirmed cooling rates exceeding 100°C/second for certain product thicknesses, while maintaining strip flatness and surface quality.

Monitoring and Optimizing the Cooling Process

Effective management of the cooling process relies on careful monitoring and the ability to optimize its parameters. A primary control point is the strip temperature at the exit of the cooling zone, just before it is exposed to air. This is typically monitored using non-contact infrared pyrometers. If the exit temperature is too high, it's a clear indication that the cooling is insufficient, risking oxidation. The corrective action might be to reduce the strip speed, increase the flow rate of cooling gas, or decrease the temperature of the cooling medium (e.g., chilled water or gas).

Atmosphere integrity within the cooling zone is equally vital. Dew point sensors and oxygen analyzers should be strategically placed within the cooling section (especially near the exit) to ensure the protective atmosphere remains pure and dry. A rising dew point or detectable oxygen can signal leaks or problems with the gas supply. For energy efficiency, some advanced bright annealing lines incorporate heat recovery systems. The hot protective gas exiting the heating zone can be used to preheat the incoming cold strip or the incoming protective gas before it enters the heating section. Similarly, heat recovered from the cooling gas or cooling water can sometimes be repurposed elsewhere in the plant. For example, studies have shown that well-designed recuperative systems in continuous annealing lines can recover up to 30-40% of the waste heat¹² from exhaust gases, significantly reducing overall energy consumption per ton of processed steel. This not only lowers operating costs but also contributes to a more sustainable manufacturing process, a factor of increasing importance to many of our clients at AKS who are focused on reducing their carbon footprint. Adjusting cooling gas flow rates or cooling water temperature/flow must be done carefully to optimize cooling efficiency based on strip gauge and speed while avoiding issues like condensation if the dew point of the protective gas is too close to the temperature of water-cooled surfaces.

Cooling Method	Cooling Rate	Uniformity	Capital Cost	Operating Cost	Maintenance Needs	Best Suited For
Gas Jet Cooling (Convection)	High to Very High	Good to Very Good	Medium-High	Medium	Moderate	Rapid cooling, thin to medium gauge, high throughputs
Water-Jacketed Muffle	Moderate	Very Good	Medium	Low-Medium	Low	Gentle cooling, sensitive materials, good uniformity
Combined Jet & Muffle	High	Very Good	High	Medium	Moderate	Versatile, wide range of gauges and speeds
Radiation Cooling (Vacuum)	Low to Moderate	Good	Very High	Low	Low	Vacuum annealing, specialty materials, slow cooling

Step 5: Quality Checks and Ensuring Desired Brightness

How do you objectively verify that your bright annealing process has truly met the required quality standards, not just for brightness but also for crucial mechanical properties? Simply looking "shiny" isn't nearly enough; undetected issues can lead to downstream manufacturing failures or, worse, customer rejections.

Quality checks for bright annealed stainless steel involve visual inspection for uniform brightness and absence of defects, surface roughness measurements, and mechanical tests (such as hardness, tensile strength, and elongation)¹³ to confirm that the desired metallurgical properties and aesthetic finish have been achieved comprehensively.

The stainless steel strip has finally emerged from the meticulously controlled environment of the cooling section, hopefully gleaming with the desired brilliant finish. But our work, as diligent manufacturers or processors, isn't quite done. Before this material can be confidently passed on to the next stage of manufacturing, or packaged for shipment to a discerning customer, a thorough and systematic quality assessment is absolutely essential. This final step serves to validate the entire bright annealing process, ensuring that not only have the aesthetic requirements (the "brightness") been met, but also that the critical metallurgical properties – the very reason for annealing in the first place – conform to specifications.

I often recall a project with an OEM supplier who manufactured deep-drawn components for high-end kitchen appliances from AISI 304L stainless steel¹⁴. Their initial visual checks of the bright annealed strip were consistently positive; the material looked excellent. However, they faced intermittent but frustrating issues with excessive cracking and tearing during their deep drawing operations. A more rigorous post-annealing quality assurance protocol, which we helped them implement, included not just visual checks but also regular Rockwell hardness tests and Erichsen cupping tests (a formability test) at defined intervals along each coil. This comprehensive testing quickly helped them identify subtle inconsistencies in the degree of annealing – some sections were slightly harder than optimal – which weren't always apparent to the naked eye but were enough to cause problems in their severe forming process. This allowed them to fine-tune their furnace temperature profiles and soak times for much greater consistency. This example powerfully underscores why this final verification stage is so critical: it is your ultimate assurance of product quality and your primary defense against potentially very costly problems downstream.

The final act in the bright annealing drama is the quality confirmation. This isn't merely a formality; it's an integral part of process control and customer satisfaction. At AKS Furnace, we always emphasize to our clients that investing in robust quality checking procedures is as important as investing in the furnace itself. It closes the loop, providing the feedback necessary for continuous improvement and ensuring that the product leaving the facility truly meets or exceeds all expectations.

Visual and Surface Inspection Techniques

The first line of quality assessment for bright annealed stainless steel is almost always visual inspection. This is typically performed under standardized lighting conditions to assess the overall brightness, uniformity of appearance across the strip width and along its length, and to look for any visible defects. Trained inspectors will look for issues such as:

• Stains or Discoloration: Any deviation from the expected bright, silvery appearance, such as yellowish, bluish, or brownish tints, can indicate localized oxidation or contamination.
• Dull Patches or Haze: Areas that lack the desired reflectivity might point to inconsistencies in cleaning, atmosphere, or temperature.
• Soot Deposits: Fine black powder on the surface usually indicates carbonaceous residues from incomplete cleaning or atmosphere issues.
• Physical Defects: Scratches, roll marks, pits, or other surface imperfections that may have been present before annealing or, less commonly, introduced within the furnace line.

While subjective visual assessment is important, objective measurements are often required, especially for demanding applications. Glossmeters are instruments used to quantify the specular reflection (shininess) of a surface. They measure the amount of light reflected at a specific angle (commonly 20°, 60°, or 85°) and report the value in Gloss Units (GU). For bright annealed stainless steel, especially grades like 304 or 430 intended for decorative or reflective applications, target gloss values can be specified (e.g., >600 GU at a 60° angle for a highly reflective finish). Surface roughness (Ra, Rz, etc.) is another key parameter, typically measured using a stylus profilometer. Bright annealing is not a polishing process; it generally aims to preserve or sometimes slightly improve the initial surface roughness of the cold-rolled strip. An unexpected increase in roughness could indicate surface reactions or deposits. For example, a client of ours at AKS, producing stainless steel for high-end elevator interiors, uses a strict protocol involving both visual inspection under D65 lighting and glossmeter readings every 500 meters of strip, with Ra measurements taken at the beginning and end of each coil to ensure consistency for their demanding architectural customers.

Verifying Mechanical Properties

Beyond the surface appearance, bright annealing is fundamentally performed to achieve specific mechanical properties, primarily softness (low hardness) and good ductility (formability). Therefore, verifying these properties is crucial. Hardness testing is one of the most common and quickest methods. Depending on the material thickness and expected hardness range, tests like Rockwell (HRB or HRC scales are common for stainless steels), Vickers (HV), or Brinell (HBW) can be used. The results are compared against the material specifications for the fully annealed condition. For instance, fully annealed AISI 304 stainless steel typically has a hardness around 70-90 HRB or approximately 150-190 HV.

Tensile testing provides more comprehensive information about the material's mechanical behavior. Test coupons are cut from the annealed strip (both longitudinally and sometimes transversely) and pulled to failure in a tensile testing machine. Key properties derived from this test include yield strength (YS), ultimate tensile strength (UTS), and percentage elongation (%El), which is a direct measure of ductility. For applications involving significant forming, such as deep drawing or stretching, a high elongation value (e.g., >40-45% for austenitic grades) and a low yield strength are desirable. For more specialized formability assessments, particularly for sheet metal, bend tests (evaluating the ability to be bent to a certain radius without cracking) or cupping tests like the Erichsen or Olsen tests can be performed. These simulate stretching and drawing behavior. Metallographic examination, though more time-consuming, can be used to assess the grain size after annealing. An appropriate, uniform, and fine-to-medium grain size (e.g., ASTM grain size number 5-8 for many applications) is generally preferred for good formability and surface finish after forming. An automotive components manufacturer, a long-term AKS client producing exhaust system parts from ferritic stainless steel (e.g., AISI 439), relies heavily on consistent low hardness values (typically <85 HRB) and specific minimum bend radii achieved in their QC tests to ensure the material withstands the complex bending and forming operations without failure.

Process Documentation and Continuous Improvement

Effective quality control doesn't end with testing; it involves meticulous record-keeping and using the data for continuous process improvement. All quality check results (visual, gloss, roughness, hardness, tensile properties, etc.) should be systematically documented and linked to specific production batches or coils, along with the corresponding process parameters used during annealing (e.g., furnace temperatures, atmosphere dew point, strip speed). This traceability is essential for quality assurance and is often a requirement for customers in regulated industries.

Implementing Statistical Process Control (SPC) techniques¹⁵ can be highly beneficial. Control charts for key quality metrics (e.g., hardness, elongation, gloss units) can help monitor the stability and capability of the bright annealing process over time, identify any undesirable trends or shifts, and provide early warnings of potential problems before they lead to out-of-specification material. This data-driven approach forms the basis of a feedback loop: if QC data indicates a drift or an increase in variability, it triggers an investigation into the process parameters, pre-treatment steps, or raw material, allowing for corrective actions to be taken. At AKS, we often assist clients in setting up such SPC systems tailored to their specific products and quality requirements. For example, if SPC charts show a slow, upward trend in the average hardness of annealed strip over several weeks, it might prompt a recalibration of furnace thermocouples, a check of the protective gas purity, or an audit of the pre-cleaning effectiveness. This proactive approach, based on diligent data collection and analysis, is fundamental to achieving and maintaining a high level of quality consistency and is a hallmark of a world-class manufacturing operation. Finally, providing Certificates of Conformity (CoC) or Mill Test Certificates (MTC) to customers, which detail the actual test results for the supplied material, builds confidence and demonstrates a commitment to quality.

Quality Parameter	Test Method / Instrument	Typical Target Range (e.g., AISI 304 Annealed)	Importance / What it Indicates
Visual Brightness	Visual Inspection	Uniformly bright, silvery, no discoloration	Overall success of oxidation prevention, cleanliness
Gloss	Glossmeter (e.g., 60° angle)	>500-700 GU (application dependent)	Objective measure of reflectivity and shine
Surface Roughness (Ra)	Profilometer	<0.2 - 0.5 µm (varies with cold roll finish)	Surface texture, preservation of initial finish
Hardness	Rockwell (HRB), Vickers (HV)	70-90 HRB or ~150-190 HV	Degree of softening, completeness of annealing
Yield Strength (0.2%YS)	Tensile Test Machine	~205-240 MPa (30-35 ksi)	Resistance to permanent deformation, formability indicator
Tensile Strength (UTS)	Tensile Test Machine	~515-550 MPa (75-80 ksi)	Maximum stress material can withstand
Elongation (%El in 50mm)	Tensile Test Machine	>40-55%	Ductility, ability to stretch before fracture, formability
Surface Defects	Visual, Magnifying Glass	Free from stains, soot, scratches, pits	Cleanliness of process, handling care

Conclusion

Mastering stainless steel bright annealing requires diligent strip preparation, precise furnace configuration, meticulous process execution, controlled cooling, and comprehensive quality verification. By consistently applying these critical steps, you can reliably produce high-quality, brilliantly finished stainless steel strip, thereby enhancing your product value and exceeding customer expectations.
