What Is the Purpose of Bright Annealing Process for Stainless Steel?

Have you ever wondered how stainless steel gets its characteristic shine and impressive durability after undergoing various manufacturing processes? Often, cold working or fabrication can leave the metal hard, stressed, and with an undesirable surface. As General Manager of AKS, I've seen firsthand how bright annealing is the transformative solution that restores stainless steel to its optimal condition, ensuring both performance and aesthetics.

Bright annealing is a specialized heat treatment process conducted in a controlled atmosphere, typically hydrogen or a nitrogen-hydrogen mix, to heat and cool stainless steel. Its purpose is to relieve internal stresses, soften the material, refine its grain structure, and importantly, maintain a bright, oxide-free surface.

Understanding the bright annealing process is crucial not just for metallurgists but for anyone involved in the stainless steel supply chain, from manufacturing to end-use. It’s a process that directly impacts the quality, usability, and longevity of stainless steel products. In my years at AKS, helping clients like Mr. Ravi Sharma in India select the right bright annealing furnace, I’ve seen how this technology is pivotal. Let's delve deeper into what makes this process so essential.

The significance of bright annealing extends far beyond just achieving a shiny surface. In industries ranging from automotive and aerospace to food processing and medical equipment, the mechanical properties and corrosion resistance of stainless steel are paramount. Bright annealing ensures that these properties are not compromised, but rather enhanced. For instance, a study by the ASM International indicates that proper annealing can increase the ductility of certain austenitic stainless steels by over 40%¹. At AKS, we engineer our furnaces, like the Bright Annealing Furnace Mr. Sharma uses for his stainless steel tube production, to meet these exacting standards, ensuring our clients can deliver top-quality products. This process is a cornerstone of modern metal treatment, balancing precision, efficiency, and material integrity.

What is bright annealing, and why is it used for stainless steel?

Dealing with stainless steel that has become hardened or developed surface imperfections after fabrication can be a real headache, affecting further processing and the final product's quality. This is a common challenge I've discussed with many clients. The solution lies in bright annealing, a precise heat treatment that rejuvenates the steel without compromising its signature luster.

Bright annealing is a heat treatment process where stainless steel is heated to a specific temperature and then cooled under a tightly controlled, oxygen-free atmosphere. This prevents oxidation, maintaining the material's bright surface while simultaneously softening it, relieving stresses, and refining its grain structure for improved properties.

The journey of stainless steel from a raw material to a finished product often involves processes like drawing, stamping, or welding, which introduce internal stresses and can alter its microstructure. This is where bright annealing becomes indispensable. As a leader in advanced heat treatment equipment at AKS, I've seen how this process is not merely a cosmetic touch-up but a fundamental step in ensuring the material's performance. For instance, Mr. Ravi Sharma, owner of a stainless steel tube manufacturing plant in India, relies on our bright annealing furnaces to ensure his tubes meet stringent quality standards for both formability and corrosion resistance. Without bright annealing, the chromium in stainless steel can react with oxygen at high temperatures, forming a dull, chromium-depleted oxide layer. This not only spoils the appearance but also significantly reduces its corrosion resistance, which is one of stainless steel's primary advantages. The protective atmosphere, typically a mix of hydrogen and nitrogen or cracked ammonia, is key to preventing this oxidation, allowing the steel to emerge from the furnace as bright and clean as it went in. This is critical for applications where both aesthetics and material integrity are non-negotiable, such as in high-end kitchenware, architectural elements, or precision medical devices.

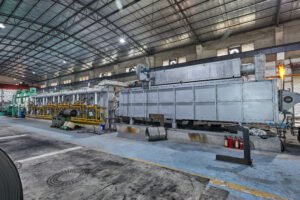

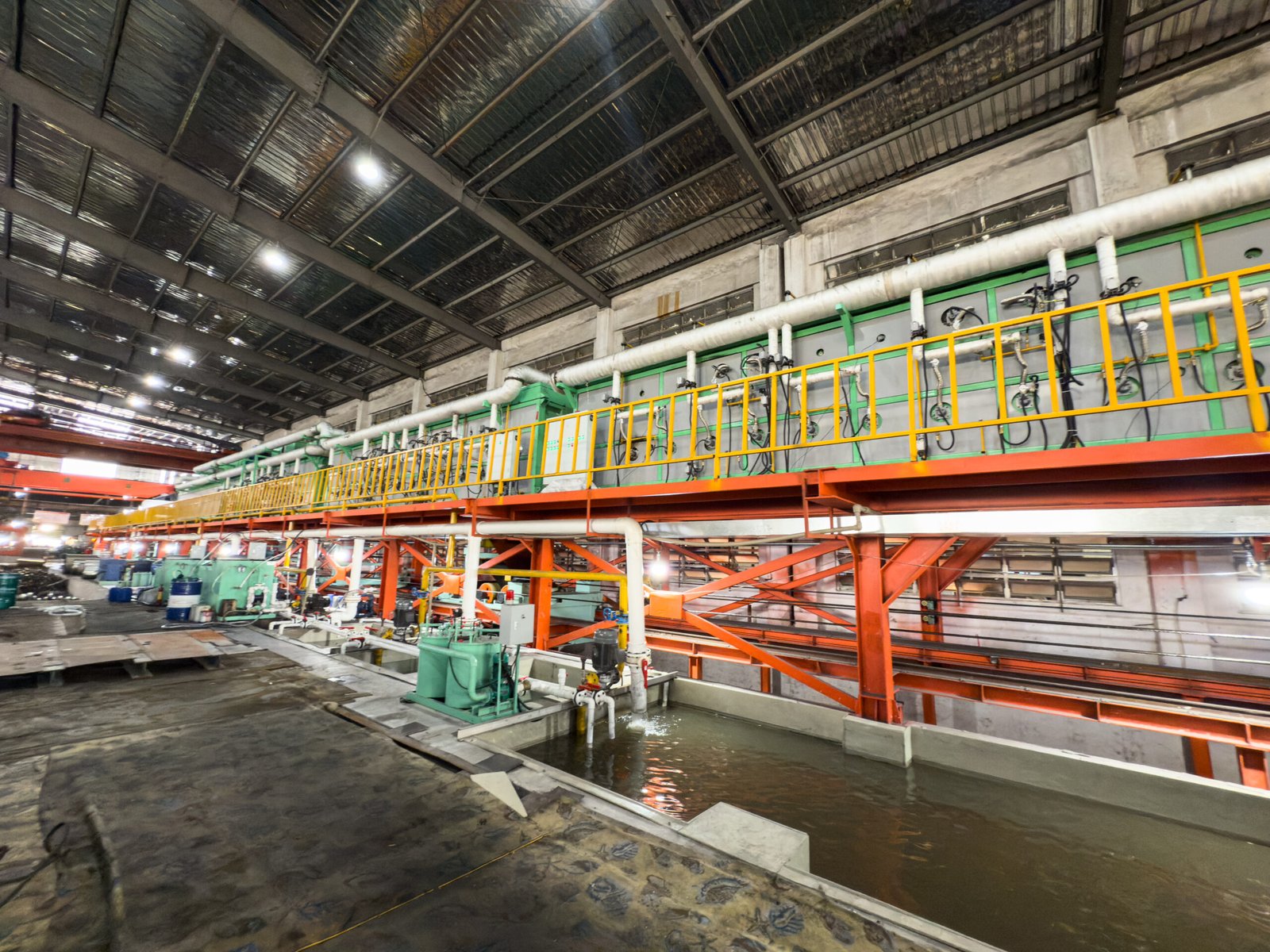

[img placehold]

Bright annealing is a sophisticated thermal process, and understanding its nuances is crucial for achieving optimal results. It’s more than just heating and cooling; it’s about precise control over temperature, time, and atmosphere to fundamentally alter and improve the steel's characteristics. At AKS, we've dedicated over 20 years to perfecting this technology.

Defining Bright Annealing: The Core Process

Bright annealing, at its heart, is a specific type of annealing process tailored for materials like stainless steel where maintaining a scale-free, bright surface is paramount. The process involves three critical stages: heating the material to its specific recrystallization temperature, holding it at that temperature for a predetermined duration (soaking), and then cooling it in a controlled manner. What distinguishes bright annealing is the meticulous control of the furnace atmosphere during all these stages. Typically, a reducing atmosphere, composed of gases like dry hydrogen, dissociated ammonia (a mixture of hydrogen and nitrogen), or high-purity nitrogen mixed with a small percentage of hydrogen, is used. This atmosphere actively prevents the formation of oxides on the steel surface, which would otherwise tarnish its appearance and potentially compromise its corrosion resistance.

I recall early in my career visiting a client who was struggling with inconsistent surface finishes on their stainless steel components. Their conventional annealing process, even with attempts at atmosphere control, often resulted in a dull or slightly oxidized surface, necessitating costly and time-consuming post-processing like pickling or electropolishing. This experience highlighted the critical importance of a true bright annealing setup. The goal is not just to soften the material but to do so while preserving its inherent brightness. This is particularly vital for austenitic stainless steels (like 304 or 316), which are widely used for their excellent corrosion resistance and aesthetic appeal. The term "bright" isn't just descriptive; it's a key performance indicator of a successful annealing cycle for these materials.

The science behind this involves ensuring that the oxygen potential within the furnace atmosphere is lower than the dissociation pressure of the oxides of the primary alloying elements in stainless steel, especially chromium. Chromium readily oxidizes, and this oxide layer, while protective in normal environments (the passive layer), becomes thick and discolored at annealing temperatures if oxygen is present. A correctly managed bright annealing furnace, like those we design at AKS, ensures that any trace oxygen is scavenged by the reducing components of the atmosphere (e.g., hydrogen reacting with oxygen to form water vapor, which is then managed via dew point control), leaving the chromium and iron surfaces pristine.

Stainless Steel's Unique Needs for Bright Annealing

Stainless steel, unlike plain carbon steel, possesses unique characteristics primarily due to its significant chromium content (typically a minimum of 10.5% by mass). This chromium is responsible for the material's renowned corrosion resistance by forming a thin, tenacious, and self-healing passive chromium oxide layer on the surface. However, during conventional heat treatment in an air atmosphere, this same chromium readily oxidizes at elevated temperatures, leading to the formation of a thick, dark, and often detrimental scale. This scale not only mars the appearance but can also lead to a depletion of chromium near the surface, potentially impairing its corrosion resistance – a phenomenon known as sensitization, especially if carbides precipitate at grain boundaries². Bright annealing directly addresses this challenge by employing a protective atmosphere that prevents such oxidation.

Furthermore, many stainless steel products, such as tubes, wires, and strips, undergo extensive cold working operations like drawing, rolling, or stamping. These processes significantly increase the material's hardness and strength (work hardening) but reduce its ductility, making further forming difficult or impossible. Mr. Ravi Sharma’s stainless steel tube manufacturing is a prime example; after drawing the tubes to size, the material is too hard for subsequent bending or flaring operations. Bright annealing is therefore essential to recrystallize the deformed grain structure, relieve internal stresses, restore ductility, and reduce hardness, all while maintaining the bright surface finish expected of stainless steel. The aesthetic appeal is often a key selling point for stainless steel products, from consumer goods to architectural features. Bright annealing ensures that this appeal is preserved without the need for aggressive chemical pickling, which can be environmentally challenging and may slightly alter the surface texture.

At AKS, when we design a bright annealing furnace, we consider the specific grades of stainless steel our clients will be processing. Austenitic grades (like 304, 316) are the most commonly bright annealed. Ferritic and martensitic stainless steels can also be bright annealed, though their specific temperature cycles and atmospheric requirements might differ slightly. For instance, the dew point of the protective atmosphere is critical; too high a dew point (too much moisture) can still lead to subtle oxidation, even in a nominally reducing atmosphere. Our furnaces incorporate precise gas control systems, including dew point monitoring, to cater to these specific needs, ensuring a consistently bright and high-quality output for diverse stainless steel applications. This attention to detail allows manufacturers like Mr. Sharma to confidently produce high-quality stainless steel products that meet international standards.

Key Objectives Achieved Through Bright Annealing

The primary objectives of bright annealing stainless steel are multi-faceted, directly impacting its mechanical properties, microstructure, and surface characteristics. One of the most critical goals is stress relief. Cold working processes, such as rolling, drawing, or stamping, induce significant internal stresses within the material. These residual stresses can lead to dimensional instability, an increased susceptibility to stress corrosion cracking, and unpredictable behavior during subsequent manufacturing steps or in service. Bright annealing, by heating the steel to its recrystallization temperature, allows these stresses to be relieved as the atoms rearrange themselves into a more stable, lower-energy configuration. This results in a more homogenous and stable material.

Another key objective is the improvement of ductility and formability. Work hardening significantly reduces the steel's ability to be further deformed. Bright annealing reverses this effect by promoting recrystallization, where new, strain-free grains form and grow, replacing the elongated and deformed grains of the cold-worked structure. This process significantly reduces the hardness and tensile strength while substantially increasing the elongation and ductility of the stainless steel. For example, a heavily cold-worked AISI 304 stainless steel might see its hardness drop from over 350 HV (Vickers Hardness) to below 180 HV, and its elongation increase from less than 5% to over 40% after proper bright annealing³. This restoration of ductility is essential for components that require complex shaping, bending, or deep drawing.

Finally, bright annealing aims to refine and homogenize the grain structure, all while preserving the material's inherent brightness. A uniform, fine-grained microstructure generally leads to improved toughness and more consistent mechanical properties throughout the component. The controlled heating and cooling cycles, coupled with the protective atmosphere, ensure that this microstructural refinement occurs without surface degradation. The prevention of oxidation means that the inherent corrosion resistance of the stainless steel is maintained, as there's no chromium depletion at the surface. This eliminates the need for post-annealing cleaning processes like acid pickling, which can be costly, environmentally impactful, and potentially alter the surface finish. The following table illustrates typical changes:

Property	Before Bright Annealing (Cold Worked 304 SS)	After Bright Annealing (304 SS)	Unit
Hardness	~350 - 400	~150 - 180	HV
Tensile Strength	~1000 - 1200	~550 - 650	MPa
Yield Strength	~800 - 1000	~250 - 350	MPa
Elongation	< 5	> 40	%
Surface Finish	May be dull or have processing marks	Bright, reflective, scale-free	-
Internal Stresses	High	Low / Relieved	-

These objectives are interconnected and collectively contribute to producing high-quality stainless steel products that meet demanding application requirements. As a furnace manufacturer, AKS focuses on delivering equipment that consistently achieves these outcomes for our clients.

How does bright annealing benefit the properties of stainless steel?

If you're working with stainless steel, you know that its properties can degrade during fabrication, becoming brittle or losing its corrosion resistance. Bright annealing isn't just a step; it's a vital process that revitalizes the steel. It offers tangible improvements that enhance the material's performance and longevity, a benefit I consistently emphasize to my clients.

Bright annealing significantly benefits stainless steel by restoring its ductility and softness, enhancing corrosion resistance by preventing surface oxidation and chromium depletion, and refining its microstructure for improved uniformity and toughness. This results in a superior quality material ready for demanding applications.

The advantages conferred by bright annealing are not superficial; they penetrate to the very core of the stainless steel, fundamentally altering its mechanical and chemical characteristics for the better. At AKS, we've engineered our bright annealing furnaces to maximize these benefits, helping manufacturers like Mr. Ravi Sharma produce stainless steel tubes that not only look pristine but also perform exceptionally. Consider the journey of a stainless steel component: it might be drawn, bent, or welded, each step introducing stress and altering its fine-grained structure. Without a corrective process like bright annealing, the material might fail prematurely or not meet the end-user's expectations. For example, the improved ductility achieved means the steel can undergo further complex forming operations without cracking. The enhanced corrosion resistance ensures it stands up to harsh environments, crucial for applications in chemical processing or marine industries. Moreover, the refined microstructure contributes to consistent material behavior, which is critical for precision components where reliability is non-negotiable. These benefits collectively translate into higher quality products, reduced manufacturing waste, and enhanced customer satisfaction.

The transformative effects of bright annealing on stainless steel properties are well-documented and form the basis of its widespread adoption in critical manufacturing sectors. It’s a process that underpins the reliability and performance of countless stainless steel products we encounter daily.

Enhanced Mechanical Properties: Ductility and Toughness

One of the most significant benefits of bright annealing is the dramatic improvement in mechanical properties, particularly ductility and toughness, while reducing hardness. When stainless steel is cold-worked – for instance, during tube drawing, wire drawing, or sheet rolling – its crystal structure undergoes significant deformation. Dislocations multiply and entangle, and grains become elongated in the direction of working. This makes the material harder and stronger but also much less ductile and more brittle. For many applications, this hardened state is undesirable, especially if the component needs to undergo further forming operations (like bending, flaring, or deep drawing) or if it needs to withstand impact or absorb energy in service. Bright annealing addresses this by inducing recrystallization⁴. During the soaking phase of the annealing cycle, new, strain-free, equiaxed grains nucleate and grow, consuming the old, deformed grains. This process effectively resets the microstructure to a softer, more ductile state.

The practical implications of this are immense. For instance, Mr. Ravi Sharma, in his stainless steel tube manufacturing plant in India, produces tubes that often require customers to perform subsequent bending or shaping. Without bright annealing after the tube drawing process, his tubes would be too hard and would likely crack during these forming operations. By using an AKS Bright Annealing Furnace, he can restore the ductility of the stainless steel (e.g., for AISI 304, elongation can increase from as low as 2-5% in a heavily cold-worked state to over 40-50% after annealing). This ensures his customers receive a product that is easy to work with and meets their forming requirements. According to data from the Nickel Institute, the tensile strength of austenitic stainless steel can be reduced by 40-50% through proper annealing, with a corresponding increase in ductility. This transformation is vital for components used in automotive exhaust systems, which require complex bending, or for deep-drawn items like kitchen sinks.

Furthermore, the refined grain structure resulting from recrystallization can also contribute to improved toughness. While an overly large grain size can be detrimental to toughness, a controlled annealing process aims for a reasonably fine and uniform recrystallized grain structure. This, combined with the relief of internal stresses, makes the material less prone to brittle fracture and better able to absorb energy before fracturing. This is particularly important for components subjected to dynamic loads or operating at low temperatures. The reduction in hardness also improves machinability for certain grades of stainless steel, although this is a more nuanced benefit as very soft materials can sometimes be "gummy" during machining. However, for most forming and general-purpose applications, the softening effect is highly beneficial.

Superior Corrosion Resistance and Surface Quality

Bright annealing plays a crucial role in preserving and even enhancing the inherent corrosion resistance of stainless steel, primarily by maintaining the integrity of its protective passive layer and preventing detrimental surface changes. The key to this is the controlled, oxygen-free atmosphere. During high-temperature processing in air, stainless steel readily forms a thick, dark oxide scale. This scale is not just unsightly; it can also lead to chromium depletion in the layer of steel immediately beneath it. Chromium is the primary element responsible for stainless steel's corrosion resistance. If its concentration at the surface drops below the critical level (around 10.5-12%), the steel's ability to form a passive protective film is compromised, making it susceptible to rust and other forms of corrosion. Bright annealing, by preventing oxidation altogether, ensures that the chromium remains uniformly distributed throughout the material, right up to the surface.

This is particularly important in preventing sensitization in austenitic stainless steels⁵. Sensitization can occur when these steels are held in or slowly cooled through a temperature range of approximately 450°C to 850°C (840°F to 1560°F). In this range, chromium carbides can precipitate at the grain boundaries, depleting the adjacent regions of chromium and making them vulnerable to intergranular corrosion. While rapid cooling after annealing is generally recommended to avoid sensitization, the bright annealing process itself, by preventing surface reactions, ensures the bulk material's chemistry isn't compromised from the outside in. The resulting bright, shiny surface is not merely aesthetic; it's an indicator that the material's surface chemistry is intact. This is vital for industries like food processing, pharmaceuticals, and medical device manufacturing, where a clean, corrosion-resistant, and non-contaminating surface is mandatory. For example, a study published in the "Journal of Materials Engineering and Performance" often highlights how surface condition, directly influenced by processes like bright annealing, impacts pitting corrosion resistance.

Moreover, because bright annealing produces a scale-free surface, it eliminates the need for post-annealing pickling or descaling operations. Acid pickling, while effective at removing scale, uses harsh chemicals (like nitric and hydrofluoric acids) that pose environmental and safety concerns. It can also slightly etch the surface, potentially altering its reflectivity and, in some cases, subtly affecting corrosion performance if not perfectly controlled. By avoiding pickling, manufacturers can reduce costs, shorten production times, and operate more sustainably. The mirror-like finish achievable with bright annealing is often a desirable feature in itself for consumer products, architectural applications, and decorative items. At AKS, our furnace designs incorporate precise atmosphere control, including dew point monitoring, to ensure the highest quality bright surface, directly contributing to the superior corrosion resistance and aesthetic value of our clients' products. Mr. Sharma, for instance, has noted a significant reduction in surface defects and improved customer satisfaction regarding the finish of his tubes since implementing our bright annealing solutions.

Improved Microstructure and Uniformity

Beyond stress relief and ductility enhancement, bright annealing significantly contributes to a more refined, homogenous, and uniform microstructure in stainless steel. The process of recrystallization, central to annealing, replaces the deformed, elongated grains typical of cold-worked material with new, equiaxed, strain-free grains. The size and distribution of these new grains can be controlled by carefully managing the annealing temperature, soaking time, and, to some extent, the prior degree of cold work. A uniformly fine-grained microstructure is generally preferred as it tends to offer a better combination of strength, toughness, and fatigue resistance compared to a coarse-grained structure. For example, the Hall-Petch relationship⁶ describes how yield strength increases with decreasing grain size. While the primary goal of annealing is often softening, achieving a consistent and reasonably fine grain size is a valuable secondary benefit.

This microstructural homogenization also extends to the distribution of alloying elements and the elimination of localized inconsistencies. During solidification or previous processing steps, some degree of chemical segregation or structural non-uniformity might occur. The thermal energy provided during annealing allows for some atomic diffusion, helping to even out these variations and leading to more predictable and consistent material properties throughout the component. This is critical for applications where performance reliability is paramount. For instance, in precision instrumentation or aerospace components, even minor variations in material properties can have significant consequences. A consistent microstructure ensures that every part behaves as expected, meeting tight engineering tolerances. Research using techniques like Electron Backscatter Diffraction (EBSD) often visualizes the dramatic transformation from a heavily deformed microstructure to a well-recrystallized one post-annealing, confirming the increased homogeneity.

The elimination of internal stresses, as discussed earlier, also contributes to improved dimensional stability during subsequent machining or use. Parts with high residual stresses can warp or change shape when material is removed or when subjected to thermal cycling. By effectively relieving these stresses, bright annealing ensures that the stainless steel components maintain their intended geometry. At AKS, our R&D team constantly works on optimizing temperature uniformity within our furnaces. Using advanced computational fluid dynamics (CFD) modeling and multi-zone heating controls, we strive to ensure that every part of the workload experiences the same thermal cycle. This is crucial for achieving consistent microstructural properties across entire batches of material. For clients like Mr. Ravi Sharma, this uniformity translates directly into reduced variability in his stainless steel tube products, leading to fewer rejections and a more reliable output for his customers. The consistency achieved through a well-controlled bright annealing process is a hallmark of high-quality stainless steel production.

What are the common challenges in the bright annealing process?

While bright annealing is incredibly beneficial, it's not without its operational hurdles. Achieving that perfect, bright, and correctly annealed finish consistently requires navigating several challenges. From maintaining atmospheric purity to ensuring temperature uniformity, these are issues I've helped many clients, including Mr. Sharma, overcome with robust furnace design and process control.

Common challenges in bright annealing include maintaining the stringent purity and dew point of the protective atmosphere⁷ to prevent oxidation, achieving uniform temperature distribution throughout the workload for consistent results, and precisely controlling heating and cooling rates to avoid thermal shock or incomplete annealing.

Successfully executing the bright annealing process demands meticulous attention to detail, as several factors can compromise the outcome. At AKS, we understand these challenges intimately because our clients rely on our equipment to overcome them day in and day out. The slightest leak in a furnace seal, an impurity in the protective gas, or a cold spot within the heating chamber can mean the difference between a perfectly bright, well-annealed product and a batch of rejects. For example, Mr. Ravi Sharma once shared his past frustrations with inconsistent annealing results before upgrading to our equipment, highlighting issues like surface discoloration or variable hardness in his stainless steel tubes. These problems often stem from difficulties in controlling the critical process parameters. The protective atmosphere, for instance, must not only be of high purity but also have a very low dew point (moisture content), as water vapor can be just as detrimental as oxygen at annealing temperatures. Similarly, ensuring that every part of a large or complex-shaped workload reaches and maintains the correct annealing temperature for the required time is a significant engineering challenge. If not managed properly, these challenges can lead to increased operational costs, reduced productivity, and compromised product quality.

Navigating these complexities is where advanced furnace technology and robust process control strategies become indispensable. Addressing these potential pitfalls proactively is key to leveraging the full benefits of bright annealing.

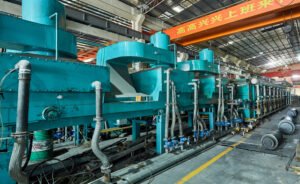

Maintaining Atmosphere Integrity and Purity

One of the most persistent and critical challenges in bright annealing is maintaining the integrity and purity of the protective atmosphere within the furnace. The entire premise of "bright" annealing hinges on preventing any oxidation or discoloration of the stainless steel surface. This requires an atmosphere that is virtually devoid of oxygen and has an extremely low dew point (moisture content). Even trace amounts of oxygen or water vapor can react with chromium and other elements in the stainless steel at elevated annealing temperatures, leading to a dull finish, surface defects, or even subtle changes in the material's surface chemistry. Common protective atmospheres include high-purity hydrogen, a nitrogen-hydrogen mix (often from dissociated ammonia), or pure nitrogen (for certain applications, though less common for true bright finish on stainless). The dew point typically needs to be -40°C (-40°F) or lower, with some critical applications demanding -60°C (-76°F) or below, which corresponds to just a few parts per million (ppm) of water vapor.

The sources of contamination are numerous. Air leaks through furnace seals (door seals, thermocouple entries, fan shafts), outgassing from refractories or fixtures, impurities in the supplied gases, or residual contaminants on the parts themselves can all compromise atmospheric integrity. I remember a case with a new client, before they partnered with AKS, who was struggling with intermittent "blueing" on their stainless steel strips. After an audit, we traced the issue to a worn-out door seal that would leak minuscule amounts of air when the furnace was at temperature, just enough to cause problems. Mr. Ravi Sharma also shared a story from his early days about using insufficiently pure hydrogen from a local supplier, which led to inconsistent surface brightness on his tubes until he invested in a better gas source and on-site purification. This highlights the need for not only a well-sealed furnace but also high-quality gas supply and potentially in-line gas purification systems.

Continuous monitoring of the atmosphere using oxygen analyzers and dew point sensors is crucial for early detection of any issues. Modern bright annealing furnaces, like those manufactured by AKS, incorporate advanced sealing technologies, such as water-cooled rubber seals, labyrinth seals, or even sand seals for certain designs like bell-type furnaces. We also pay close attention to material selection for internal components to minimize outgassing. Furthermore, proper purging procedures before starting the heating cycle are essential to flush out any residual air from the furnace chamber. Maintaining this delicate atmospheric balance requires robust furnace construction, high-quality input gases, vigilant monitoring, and diligent operational practices. Any lapse can quickly lead to costly rework or scrap.

Achieving Uniform Temperature Distribution

Another significant challenge in the bright annealing process is achieving and maintaining uniform temperature distribution throughout the entire workload. For effective annealing, every part of the stainless steel being treated must reach the specified annealing temperature and be held there for the correct duration. If some parts of the load are too cool (cold spots), they may not fully recrystallize, resulting in incomplete annealing, higher-than-desired hardness, and retained internal stresses. Conversely, if some parts are too hot (hot spots), they might experience excessive grain growth, which can degrade mechanical properties, or in extreme cases, even localized melting or distortion, especially with thinner sections or more sensitive alloys. Achieving temperature uniformity of ±5°C to ±10°C (±9°F to ±18°F) across the workload is a common target for high-quality bright annealing.

This challenge is exacerbated by several factors, including the size and density of the load, the geometry of the parts, and the design of the furnace itself. Large, densely packed loads can impede heat transfer to the center of the charge, making it difficult for those areas to reach temperature as quickly or uniformly as the outer parts. Complex part geometries can create "shadow" areas that are shielded from direct radiation or convection. In continuous furnaces, like mesh belt conveyor furnaces that AKS produces, the way parts are loaded onto the belt and the belt speed itself can influence temperature uniformity. Mr. Ravi Sharma, for his Bogie Hearth Furnace used for batch annealing larger components, specifically discussed the importance of burner placement and internal circulation fans to ensure even heating for his varied product mix.

To address this, furnace manufacturers employ various strategies. AKS furnaces, for example, utilize multi-zone heating control, where the furnace chamber is divided into several independently controlled heating zones. Each zone has its own thermocouples and power controllers, allowing for precise temperature adjustments to compensate for varying heat demands or losses in different parts of the furnace. Strategic placement of heating elements (electric) or burners (gas-fired), coupled with the use of high-velocity convection fans (in convection-assisted furnaces) or optimized radiant tube design, helps to promote more uniform heat transfer. Advanced insulation materials and careful furnace chamber design also play a role in minimizing temperature gradients. Periodic temperature uniformity surveys (TUS)⁸ are often required, especially in industries with stringent quality standards like aerospace or automotive, to validate that the furnace is performing within the specified tolerances.

Controlling Heating and Cooling Rates

Precise control over both the heating and cooling rates during the bright annealing cycle is another critical challenge, with significant implications for the final properties and integrity of the stainless steel. Heating too rapidly can induce thermal stresses, potentially leading to distortion or even cracking, especially in parts with complex geometries or varying cross-sections. While the goal is to reach the annealing temperature efficiently, the ramp rate must be managed to allow the material to heat through uniformly. Different stainless steel grades also have different sensitivities. For instance, some high-alloy or precipitation-hardening stainless steels might require specific, carefully controlled heating steps to ensure proper dissolution of phases or to avoid unwanted phase transformations.

The cooling phase is equally, if not more, critical for many stainless steel grades. For austenitic stainless steels (e.g., 304, 316), rapid cooling from the annealing temperature through the sensitization range (approximately 850°C down to 450°C)⁹ is often necessary to prevent the precipitation of chromium carbides at grain boundaries. Slow cooling through this range can lead to sensitization, severely impairing intergranular corrosion resistance. Therefore, bright annealing furnaces for austenitic stainless steels often incorporate a rapid cooling zone, typically employing forced convection with the protective atmosphere (e.g., high-velocity hydrogen or nitrogen jets) over heat exchangers. However, even this rapid cooling must be controlled; cooling too fast can reintroduce thermal stresses or cause distortion, particularly in larger or more complex parts. There's a balance to be struck, which often depends on the specific alloy and part geometry. The table below illustrates the typical impact of cooling rates on sensitization:

Cooling Rate from Annealing Temp.	Sensitization Risk (Austenitic SS)	Typical Microstructure Effect	Impact on Corrosion Resistance
Very Slow (e.g., furnace cool)	High	Significant chromium carbide precipitation at grain boundaries	Severely Reduced (Intergranular)
Moderate (e.g., air cool)	Moderate to High	Some carbide precipitation possible, depends on section size	Potentially Reduced
Rapid (e.g., water quench/fast gas)	Low	Minimal to no carbide precipitation, chromium stays in solution	Maintained / Optimal
Too Rapid (for geometry)	Low (for sensitization)	Risk of distortion, thermal shock, retained austenite in some steels	N/A (if part integrity fails)

For other types of stainless steel, such as martensitic grades, the cooling rate is manipulated to achieve specific hardness levels or microstructures. For example, they might be air-hardened or require a more controlled, slower cool to avoid excessive hardness or cracking. At AKS, our intelligent control systems allow for programmable heating and cooling profiles, enabling users like Mr. Sharma to create and store specific recipes tailored to different stainless steel grades and product requirements. These systems precisely manage power to heating elements and control gas flow in cooling zones to adhere to the programmed cycle, ensuring consistent and optimized results while mitigating risks associated with uncontrolled thermal cycling. This level of control is essential for tackling the inherent challenges of heating and cooling diverse materials effectively.

How can these challenges be addressed during stainless steel treatment?

Facing challenges like atmospheric contamination or temperature inconsistencies in bright annealing can be disheartening, potentially leading to scrapped parts and lost profits. As someone who has dedicated my career at AKS to perfecting heat treatment solutions, I can assure you that these hurdles are surmountable with the right approach, focusing on furnace design, precise control systems, and intelligent automation.

Challenges in bright annealing are addressed through advanced furnace designs with superior sealing, high-purity gas systems with real-time monitoring (oxygen sensors, dew point meters), multi-zone intelligent temperature control for uniformity, and automated, programmable heating/cooling cycles tailored to specific stainless steel grades.

Overcoming the common pitfalls of bright annealing requires a multi-pronged strategy, integrating robust engineering with sophisticated process management. At AKS, our philosophy revolves around providing clients like Mr. Ravi Sharma with not just a furnace, but a complete solution that anticipates and mitigates these challenges. For instance, the issue of maintaining atmosphere integrity is tackled head-on with innovative sealing technologies and meticulous construction quality. Temperature uniformity, a constant concern for consistent annealing, is managed through advanced heating element design, strategic placement, and intelligent multi-zone controls that adapt to varying loads. Furthermore, the precise control of heating and cooling rates, critical for achieving desired metallurgical properties and avoiding issues like sensitization or thermal shock¹⁰, is managed by sophisticated PLC-based systems with user-programmable recipes. It's this holistic approach – combining superior mechanical design with smart automation and continuous monitoring – that allows manufacturers to consistently achieve high-quality bright annealed stainless steel products, optimizing their operations and enhancing their product value. This proactive stance transforms potential problems into manageable process parameters.

By focusing on these key areas, manufacturers can significantly enhance the reliability and efficiency of their bright annealing operations, ensuring consistent quality and performance of their stainless steel products.

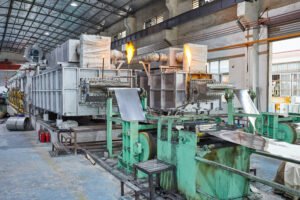

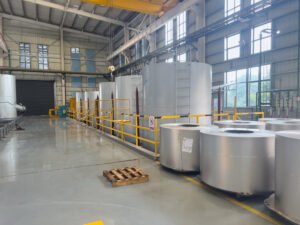

Advanced Furnace Design and Sealing Technologies

A cornerstone in addressing bright annealing challenges lies in the fundamental design and construction of the furnace itself, particularly its sealing capabilities. The furnace chamber must be as gastight as possible to prevent the ingress of ambient air (containing oxygen and moisture) and to minimize the loss of the expensive protective atmosphere. At AKS, we place enormous emphasis on this. For continuous furnaces, such as our mesh belt conveyor furnaces, intricate sealing systems are employed at the entry and exit points. These often involve multiple curtains of inert gas (like nitrogen), flame curtains (for hydrogen atmospheres), and fiber baffles, creating a buffer zone that isolates the internal hot zone atmosphere from the outside environment. The furnace casing itself is typically welded gastight, and any penetrations for elements, thermocouples, or fan shafts are meticulously sealed using high-temperature gaskets, O-rings (often water-cooled), or specialized packing glands.

For batch furnaces, like the Bell-Type Annealing Furnaces or Bogie Hearth Furnaces we offer, sealing the main door or the bell is paramount. Our bell-type furnaces, for example, often utilize a sand seal or a liquid seal (oil or water) around the base of the retort, providing a highly effective barrier against leaks. For front-loading batch furnaces, the door seal is critical; we use robust, often water-cooled, silicone or specialized rubber seals that maintain their integrity even under repeated thermal cycling and pressure differentials. Mr. Sharma, who operates both continuous and batch AKS furnaces, specifically noted the reliability of the sealing systems as a key factor in maintaining consistent atmosphere and achieving excellent brightness on his stainless steel tubes and components. The choice of internal refractory materials is also crucial; they must be low-outgassing and stable at high temperatures in reducing atmospheres to avoid contaminating the process. For muffle-type furnaces, the integrity of the muffle (typically made from high-nickel alloys like Inconel or specialized ceramics) is vital, as it physically separates the workload and protective atmosphere from the heating elements and insulation.

Furthermore, the overall structural integrity of the furnace, including robust shell construction and proper support for internal components, ensures that seals remain effective over the long term, even with the stresses of thermal expansion and contraction. We also consider aspects like positive pressure control within the furnace; maintaining a slight positive pressure with the protective gas helps to ensure that any minor imperfections in sealing result in an outward flow of protective gas rather than an inward leak of air. This comprehensive approach to furnace design and sealing technology is fundamental to creating the controlled environment necessary for successful bright annealing, minimizing gas consumption and maximizing product quality.

Precise Atmosphere Control and Monitoring Systems

Beyond a well-sealed furnace, the active management and monitoring of the protective atmosphere are critical for consistently addressing the challenges of bright annealing. This involves ensuring the high purity of the incoming gases and continuously verifying the conditions within the furnace chamber. At AKS, we integrate sophisticated gas control and analysis systems into our furnaces. This often starts with ensuring the source gas – be it bottled hydrogen, nitrogen, or gas from an on-site generator like an ammonia cracker – meets the required purity specifications. We may recommend or supply gas purification systems, such as deoxidizers or molecular sieve dryers, to further reduce oxygen and moisture content before the gas enters the furnace. For example, for high-quality bright annealing of austenitic stainless steel, the oxygen content in the furnace atmosphere should ideally be below 5-10 ppm, and the dew point should be -40°C (-40°F) or lower%20as%20well%20as%20hydrogen.)¹¹, sometimes even below -60°C (-76°F) for exceptionally bright finishes on sensitive alloys.

Real-time monitoring is achieved through strategically placed sensors within the furnace or in the exhaust gas line. Oxygen analyzers (often zirconia-based) provide continuous readings of oxygen concentration, allowing for immediate detection of air leaks or other contamination sources. Dew point meters (using chilled mirror, capacitive, or other sensing technologies) continuously measure the moisture content of the atmosphere. These sensors are typically linked to the furnace's PLC (Programmable Logic Controller), which can trigger alarms if parameters go out of range, or in some advanced systems, automatically adjust gas flow rates or initiate purging sequences to correct deviations. For instance, if an oxygen sensor detects a rise in O2 levels, the system might automatically increase the flow rate of the protective gas to help purge the contaminants and maintain a reducing environment. Mr. Sharma mentioned how the integrated oxygen and dew point monitoring on his AKS furnaces provides him with peace of mind and allows his team to proactively manage the atmosphere quality, reducing the incidence of surface defects.

Automated gas mixing and flow control systems also play a vital role. Many bright annealing processes use a mixture of gases, such as nitrogen and hydrogen. Precise mass flow controllers (MFCs) are used to blend these gases in the correct proportions and maintain consistent flow rates, irrespective of pressure fluctuations in the supply lines. The ability to adjust these mixtures based on the specific material being processed or the stage of the annealing cycle (e.g., a higher hydrogen content during the high-heat phase for maximum reduction potential) offers greater process flexibility and optimization. This level of precise control ensures that the chemical environment within the furnace is always conducive to producing a bright, scale-free surface, directly addressing the challenge of atmospheric contamination.

Intelligent Temperature Regulation and Process Automation

Addressing the challenges of temperature uniformity and precise heating/cooling rates hinges on intelligent temperature regulation and comprehensive process automation. Modern bright annealing furnaces, such as those developed by AKS, are equipped with sophisticated PLC-based control systems, often integrated with SCADA (Supervisory Control and Data Acquisition)¹² for centralized monitoring and recipe management. As mentioned earlier, multi-zone PID (Proportional-Integral-Derivative) controllers are standard for achieving temperature uniformity. These controllers continuously compare the actual temperature measured by thermocouples in each zone with the setpoint and dynamically adjust the power output to the heating elements (or fuel flow to burners) in that zone. This ensures that temperature gradients across the workload are minimized, and the entire batch receives the intended thermal treatment. For example, in a long continuous furnace, the entry zones might require more power to bring the cold material up to temperature, while soak zones require less power just to maintain it. Intelligent controllers manage this dynamically.

Process automation extends to the entire annealing cycle through recipe management. Operators can create, store, and recall specific thermal profiles (recipes) for different stainless steel grades, thicknesses, and load configurations. A recipe will define the heating ramp rates, soaking temperatures, soaking times, cooling rates, and atmosphere composition and flow rates for each stage of the process. This eliminates manual adjustments and operator variability, ensuring consistent and repeatable results batch after batch. For Mr. Ravi Sharma, this has been a significant benefit, as his plant processes various types of stainless steel tubes. The ability to select a pre-programmed recipe for a specific product run ensures that the optimal annealing parameters are always applied, reducing the risk of errors and improving overall efficiency. These systems often include data logging capabilities, recording all critical process parameters for quality assurance, traceability, and process analysis.

Furthermore, advanced automation can include features like load sensing, where the control system adapts the heating cycle based on the actual mass of the load, optimizing energy consumption and cycle time. Predictive algorithms can also anticipate thermal lags and adjust power proactively to maintain tighter temperature control. Safety interlocks and alarm management are integral parts of the automation system, protecting both the equipment and personnel. For example, the system will ensure that protective atmosphere flow is established and oxygen levels are sufficiently low before allowing the heating elements to energize. This comprehensive approach to intelligent temperature regulation and process automation directly tackles the challenges of achieving consistent metallurgical properties and preventing thermal damage, making the bright annealing process more reliable, efficient, and controllable.

What advancements have improved the bright annealing process efficiency?

a competitive market, efficiency is king. Outdated annealing processes can be energy-hungry and slow, impacting your bottom line. As a provider of modern heat treatment solutions at AKS, I've witnessed how technological advancements are revolutionizing bright annealing, making it faster, more energy-efficient, and more precise than ever before, delivering significant operational savings.
Advancements improving bright annealing efficiency include energy-saving heating elements and insulation, high-convection systems for faster heat transfer, intelligent automation with real-time process optimization, on-site gas generation/recycling systems reducing consumable costs, and improved furnace designs minimizing heat loss and cycle times.
The quest for greater efficiency in bright annealing is driven by the dual imperatives of reducing operational costs and enhancing productivity, all while maintaining or improving product quality. At AKS, our R&D efforts are consistently focused on integrating cutting-edge technologies into our furnace designs to achieve these goals. For clients like Mr. Ravi Sharma, who are always looking to optimize their production processes and manage energy expenses, these advancements are not just incremental improvements but game-changers. Consider the impact of moving from older refractory materials to modern lightweight ceramic fiber insulation – this alone can significantly reduce the furnace's thermal mass, leading to faster heat-up and cool-down times and lower energy consumption per cycle. Similarly, the shift from simple on-off temperature controls to sophisticated PID algorithms combined with advanced sensors allows for much tighter process control, minimizing energy wastage and ensuring that every batch is annealed optimally without over-processing. These technological leaps are making bright annealing a more sustainable and economically viable process for a wider range of applications.

These innovations are not just theoretical; they are being implemented in modern bright annealing furnaces worldwide, leading to tangible benefits in energy consumption, throughput, and operational costs.

Energy-Efficient Heating Technologies

A significant area of advancement in bright annealing has been the development and implementation of more energy-efficient heating technologies and furnace construction techniques. Historically, older furnaces could be quite energy-intensive due to inefficient heating elements, poor insulation, and designs that did not optimize heat transfer. Modern bright annealing furnaces from manufacturers like AKS now incorporate a range of features to minimize energy consumption. For electrically heated furnaces, advancements in heating element materials (e.g., silicon carbide, molybdenum disilicide, advanced metallic alloys like Kanthal APM/APT¹³) offer higher operating temperatures, longer life, and better energy conversion efficiency. The design and placement of these elements are also optimized using computational modeling to ensure uniform heat distribution and maximize radiant and convective heat transfer to the workload, reducing wasted energy.
For gas-fired furnaces, which are common for larger installations, the adoption of high-efficiency burners, including recuperative and regenerative burner systems, has led to substantial energy savings. Recuperative burners preheat the incoming combustion air using the hot exhaust gases, while regenerative burners use pairs of burners alternating cycles through heat-storing ceramic media. These systems can recover a significant percentage of the waste heat, leading to fuel savings that can range from 15% to over 40% compared to conventional cold-air burner systems, according to industry reports and case studies. For instance, the U.S. Department of Energy has documented significant savings through such burner upgrades in various industrial heating applications. At AKS, when designing gas-fired bright annealing lines, we always evaluate the potential for these energy recovery systems based on the scale of operation and client needs.
Furthermore, improvements in insulation materials have played a crucial role. Traditional hard refractories have high thermal mass, meaning they absorb and store a lot of heat, leading to longer heat-up and cool-down times and increased energy loss. Modern furnaces increasingly use lightweight ceramic fiber insulation, multi-layer insulation boards, and vacuum-formed shapes. These materials have much lower thermal conductivity and thermal mass, resulting in faster furnace response, reduced heat storage losses, and improved overall thermal efficiency. The combination of efficient heating sources and superior insulation means that less energy is required to bring the furnace to temperature and maintain it, directly translating into lower operating costs for our clients. As an example, upgrading insulation in an older furnace can sometimes yield energy savings of 10-20% on its own.

Automation and Smart Control Systems

The integration of advanced automation and smart control systems represents another leap forward in the efficiency and reliability of the bright annealing process. Beyond basic temperature control, modern systems offer comprehensive process management, real-time monitoring, and data-driven optimization capabilities. PLC/SCADA systems¹⁴, as mentioned before, are central to this. They allow for precise, repeatable execution of complex annealing cycles, minimizing operator intervention and the potential for human error. This consistency itself is a form of efficiency, as it reduces scrap rates and rework. These systems can manage not just temperature, but also atmosphere flow rates, dew point, oxygen levels, conveyor speeds (in continuous furnaces), and cooling rates, all according to pre-programmed recipes tailored to specific alloys and product dimensions.\n\nA key advancement is the move towards more adaptive and intelligent control. For example, some systems can adjust process parameters in real-time based on sensor feedback. If a slight deviation in atmosphere purity is detected, the system might automatically increase the purge gas flow or flag an operator. Load-adaptive control algorithms can optimize heating cycles based on the mass and configuration of the workload, ensuring efficient energy use without under or over-processing. Mr. Ravi Sharma has expressed keen interest in these smart features for his future plant upgrades, particularly how they can help his team manage diverse production runs with minimal manual setup and maximum consistency. He sees automation not just as a way to improve quality but also to address challenges like skilled labor availability.
Furthermore, the data logging capabilities of these smart systems are invaluable for continuous improvement and predictive maintenance. By analyzing historical process data, engineers can identify trends, optimize recipes, and troubleshoot issues more effectively. Predictive maintenance algorithms can monitor the performance of critical components like heating elements, fans, or sensors, and alert maintenance staff to potential failures before they occur, minimizing unplanned downtime and improving overall equipment effectiveness (OEE). Integration with plant-wide Manufacturing Execution Systems (MES) or Enterprise Resource Planning (ERP) systems is also becoming more common, allowing for better production planning, scheduling, and cost tracking. A client of AKS in Southeast Asia, after implementing a new automated bright annealing line for stainless steel tubes, reported a 15% increase in throughput and a 10% reduction in energy consumption per ton, primarily attributed to the enhanced process control and reduced cycle variability offered by the advanced automation system.

Innovations in Protective Atmosphere Generation and Recycling

The protective atmosphere is a critical consumable in bright annealing, and its cost can be significant, especially when using high-purity gases like hydrogen. Innovations in on-site gas generation and atmosphere recycling systems have greatly improved the cost-efficiency and sustainability of the bright annealing process. Relying solely on bottled or bulk-supplied gases can be expensive and logistically challenging, especially for high-volume operations. On-site gas generation offers an attractive alternative. For example, ammonia (NH3) crackers thermally dissociate ammonia into a mixture of 75% hydrogen and 25% nitrogen. This \"dissociated ammonia\" is a widely used and cost-effective protective atmosphere for bright annealing many grades of stainless steel. Pressure Swing Adsorption (PSA) or membrane-based nitrogen generators¹⁵ can produce high-purity nitrogen on-site, which can be used directly or blended with hydrogen.
Hydrogen recycling systems are another key innovation, particularly for processes requiring high hydrogen concentrations. In these systems, the hydrogen-rich exhaust gas from the furnace, instead of being flared off or vented, is collected, purified, and re-compressed for reuse. Purification steps might involve removing moisture, oxygen (if any ingress occurred), and other trace contaminants. While the capital cost of recycling systems can be significant, the savings in hydrogen consumption can lead to a relatively short payback period, especially in regions where hydrogen prices are high or for large-scale operations. Studies have shown that hydrogen recycling can reduce consumption by as much as 80-95%. At AKS, we often advise clients with substantial hydrogen usage to consider integrated gas generation or recycling. For instance, for a large continuous bright annealing line, the ongoing cost of bottled hydrogen can quickly dwarf the investment in an ammonia cracker or a recycling unit.
The table below offers a simplified cost comparison perspective for different atmosphere sources, though actual costs vary significantly by region and scale:

Atmosphere Source	Relative Capital Cost	Relative Operating Cost (Gas)	Purity/Consistency	Suitability
Bottled High-Purity H2/N2	Low	High	Very High (if sourced well)	Small scale, intermittent use, very high purity needs
Bulk Liquid H2/N2 Storage	Medium	Medium-High	Very High	Medium to large scale, consistent high purity
On-site Ammonia Cracker (for H2/N2)	Medium-High	Low	Good (dew point critical)	Medium to large scale, common for stainless steel
On-site PSA Nitrogen Generator	Medium	Very Low	Good to Very High	All scales (if N2 or N2/H2 mix is suitable)
Hydrogen Recycling System	High	Very Low (make-up gas only)	Variable (depends on system)	Large scale, high H2 usage

These innovations not only reduce direct operating costs but also contribute to environmental sustainability by minimizing resource consumption and emissions associated with gas production and transportation. For manufacturers like Mr. Sharma, who are increasingly focused on both economic and environmental performance, these advancements in atmosphere management are crucial for maintaining a competitive edge.

Conclusion

Bright annealing is an indispensable heat treatment for stainless steel, crucial for restoring ductility, enhancing corrosion resistance, and ensuring a pristine surface finish. By understanding and addressing its challenges with advanced furnace technology and intelligent controls, we ensure optimal material properties.
