Bright Annealing Process Upgrades for Strip and Wire Lines

Are you struggling with inconsistent product finishes from your bright annealing line? Outdated equipment can lead to high energy costs, frequent downtime, and an inability to meet today's stringent quality demands. It's time to consider how modern upgrades can revolutionize your strip and wire annealing, boosting both quality and profitability.

Upgrading bright annealing processes for strip and wire lines involves adopting advanced furnace technologies, optimizing atmosphere control systems, and integrating automation. These improvements are crucial for enhancing product surface quality, improving energy efficiency, increasing throughput, and reducing operational costs, ultimately leading to a more competitive manufacturing operation.

Investing in your bright annealing capabilities isn't just about new machinery; it's about future-proofing your operations. As markets demand higher quality and greater consistency, the ability to precisely control every aspect of the annealing process becomes paramount. In this article, I'll share insights from my experience at AKS Furnaces, guiding you through how strategic upgrades can transform your production.

The decision to upgrade often stems from a growing dissatisfaction with the status quo – perhaps rising customer complaints about surface defects, or internal frustrations over excessive energy bills and maintenance headaches. I've seen many companies, from stainless steel strip processors to copper wire manufacturers, reach a tipping point where the cost of inaction outweighs the investment in new technology. For instance, a leading stainless steel coil processor we worked with was battling rejection rates close to 8% due to inconsistent brightness and occasional surface oxidation. Their older muffle furnace, while a workhorse in its day, simply couldn't provide the atmospheric purity or temperature uniformity required for their high-end automotive clients. This isn't an isolated case; industry data suggests that facilities with annealing lines over 15 years old can see energy inefficiencies increase¹ by up to 20% and maintenance costs nearly double compared to modern installations. By embracing technological advancements, such as those we develop at AKS Furnaces, companies can turn these challenges into competitive advantages, achieving superior product quality and significantly improved operational efficiency.

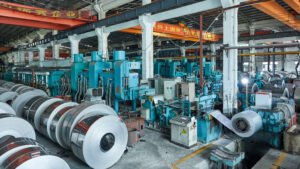

What is the current state of bright annealing processes for strip and wire lines?

Many strip and wire manufacturers are operating with bright annealing technology that, while once effective, now lags behind modern advancements, leading to missed opportunities. This can manifest as inconsistent surface quality, high energy bills, and a struggle to meet evolving customer specifications for brightness and metallurgical properties. Understanding the current landscape of these processes is the first step to identifying crucial areas for impactful improvements in your own facility.

Currently, bright annealing for strip and wire predominantly utilizes continuous furnaces, often muffle-type or increasingly, muffle-less designs, operating with protective atmospheres like hydrogen, nitrogen, or blends. While effective, many existing installations grapple with challenges in maintaining optimal energy efficiency, precise atmosphere control, and consistent temperature uniformity.

The bright annealing process is a cornerstone in metal treatment, particularly for materials like stainless steel, carbon steel, copper, and aluminum, where a clean, oxide-free, and bright surface is paramount. As I've observed in my work at AKS Furnaces, the demand for higher quality finishes and tighter metallurgical tolerances continues to grow across various sectors, from automotive components to consumer electronics. Historically, muffle furnaces were the standard, providing a physical barrier between the heating elements and the protective atmosphere. However, these are gradually being superseded or complemented by muffle-less designs, which can offer better heat transfer efficiency and reduced maintenance. The choice of protective atmosphere—be it cracked ammonia, pure hydrogen, or nitrogen-hydrogen mixtures—is critical and depends on the material being processed and the desired outcome. For example, high-chromium stainless steels demand extremely low dew points, often achievable only with high-purity hydrogen or precisely controlled H2-N2 mixtures. The current state reflects a transition: while many robust older lines are still in operation, there's a clear industry trend towards more sophisticated, energy-efficient, and automated solutions that can deliver superior consistency and control, which we actively promote and develop.

The landscape of bright annealing for strip and wire is characterized by a spectrum of technologies, ranging from legacy systems that have served for decades to state-of-the-art lines incorporating the latest innovations. At AKS Furnaces, we frequently encounter clients operating equipment that, while functional, presents significant opportunities for enhancement in terms of efficiency, control, and output quality. Understanding this current state is pivotal for any manufacturer looking to optimize their operations. The prevailing technologies, the methods for generating and controlling protective atmospheres, and the level of automation are key facets defining the operational capabilities and limitations of existing bright annealing lines. Many facilities still rely on foundational principles that have been around for years, but the devil is in the details of how these principles are implemented and controlled. For instance, while the concept of using a reducing atmosphere is universal, the precision with which that atmosphere's composition and purity (especially dew point) are maintained can vary dramatically, directly impacting the final product's brightness and integrity. Similarly, temperature control might range from basic single-zone regulation to sophisticated multi-zone profiling, each with different implications for metallurgical properties and energy consumption. Recognizing these variations and understanding their impact is the first step towards identifying meaningful upgrade paths.

Dominant Furnace Technologies in Use

In my experience, continuous muffle furnaces remain quite common, especially for thinner gauge strips and wires where precise atmosphere integrity is paramount. The muffle, typically made from high-temperature alloys like Inconel or specialized ceramics, creates a sealed chamber through which the material passes, protecting it from combustion products if direct-fired heating is used externally, or from element degradation if electric elements are inside the muffle but separated from the process atmosphere. Their advantage lies in this robust separation, which can simplify atmosphere control. However, muffles are expensive, have a finite lifespan, are prone to thermal stress cracking or distortion, and can act as a thermal barrier, sometimes reducing heating efficiency.

Conversely, muffle-less furnace designs have gained significant traction, particularly for medium to heavier gauge strips and certain wire applications. These designs, which we at AKS Furnaces often recommend for their efficiency and lower maintenance, can employ radiant tubes (where combustion occurs within tubes radiating heat to the product) or direct electric heating elements made from advanced materials that can withstand the process atmosphere. The absence of a muffle typically improves heat transfer efficiency and eliminates the cost and downtime associated with muffle replacement. A well-designed muffle-less furnace, like our Bright Annealing Furnace models, can achieve excellent atmospheric integrity through superior sealing mechanisms at the entry and exit points and throughout the furnace body. For example, a carbon steel strip plant in Southeast Asia, a client of ours, transitioned from an aging muffle furnace to one of our muffle-less designs and reported a 15% reduction in energy consumption per ton and a near elimination of unscheduled downtime related to muffle issues.

Regardless of muffle or muffle-less design, continuous operation is the norm for high-throughput strip and wire annealing. These lines integrate pay-off and take-up systems, and often pre-cleaning and post-cooling sections. The key design considerations revolve around achieving uniform heating and cooling rates, maintaining strip/wire tension, and ensuring consistent atmospheric conditions throughout the entire process length. Industry data is somewhat fragmented, but observational trends suggest a steady increase in the adoption of muffle-less designs, particularly for new installations, driven by their operational cost benefits. For instance, in stainless steel strip annealing, where brightness is critical, the ability of muffle-less designs to achieve rapid heating and cooling cycles with precise atmosphere control is highly valued.

Protective Atmosphere Generation and Control

The choice and control of the protective atmosphere are perhaps the most critical aspects of bright annealing. The most common atmospheres I encounter are cracked ammonia (dissociated ammonia, DA), typically yielding a 75% hydrogen and 25% nitrogen mixture; pre-mixed hydrogen-nitrogen blends (from liquid gas storage or on-site generators); and, for specific applications requiring the highest reducing potential, pure hydrogen. Cracked ammonia is often favored for its relatively low generation cost, using an ammonia dissociator. However, it requires careful handling of ammonia, and residual ammonia or incomplete cracking can lead to nitriding in certain steels. For instance, a client producing 300-series stainless steel wire found that switching from cracked ammonia to a precisely controlled nitrogen-hydrogen mix from an on-site N2 PSA generator and H2 tube trailers significantly improved surface consistency and reduced their reject rate due to occasional nitriding concerns.

Generation methods vary. Ammonia crackers are common for DA gas. For nitrogen-hydrogen blends, companies might use on-site Pressure Swing Adsorption (PSA) or membrane nitrogen generators paired with purchased hydrogen (tube trailers, liquid H2 tanks) or, less commonly for bright annealing due to cost, hydrogen electrolysis units. The key challenge lies in maintaining high purity and, crucially, a low dew point (moisture content) within the furnace. Moisture and oxygen are the primary enemies of a bright finish. Typical dew point requirements for achieving a bright surface on stainless steel are often below -40°C, and for high-chromium grades or critical applications, it can be as low as -60°C or even -70°C. Achieving and maintaining such low dew points necessitates a gas-tight furnace, high-purity incoming gases, and often, gas purification or recirculation systems.

The cost implications are significant. Pure hydrogen is the most expensive but offers the best reducing potential. Cracked ammonia is cheaper to produce but carries the aforementioned risks. Nitrogen-hydrogen blends offer a balance, allowing for precise control of hydrogen content (typically 5-75% H2, depending on the material) to optimize both reduction potential and safety, as well as cost. For example, annealing copper typically requires a lower hydrogen percentage (e.g., 5-10% H2 in N2) compared to stainless steel, reducing gas costs. Control systems range from manual flow meters to sophisticated automated systems with online gas analyzers (measuring O2, H2, and dew point) that dynamically adjust gas flow rates and compositions.

Atmosphere Type	Composition	Pros	Cons	Typical Application
Cracked Ammonia (DA)	~75% H2, 25% N2	Low on-site generation cost	Safety (ammonia handling), potential for nitriding, moisture from cracking	General purpose stainless, some carbon steels
Nitrogen-Hydrogen Mix	Variable H2 (5-75%), Bal. N2	Precise H2 control, good safety profile, customizable	Higher cost if using bulk N2/H2, requires mixing system/gas supply	High-grade stainless, copper, alloy steels
Pure Hydrogen	90-100% H2	Strongest reducing potential, highest purity	Highest cost, significant flammability/safety concerns, H2 embrittlement risk	Specialty alloys, refractory metals, critical parts
Dissociated Methanol	CO, H2	Good reducing potential (less common for bright annealing now)	CO toxicity, carbon potential control complexity, soot formation risk	Historically for carbon steels (less common now)

Prevailing Levels of Automation and Process Monitoring

The level of automation and process monitoring in existing bright annealing lines varies widely but is a critical differentiator in performance. Many older lines I've assessed still operate with fairly basic controls: manual adjustments for gas flow rates based on periodic offline measurements, simple single-loop temperature controllers, and manual logging of process parameters. While these can work, they are highly dependent on operator skill and diligence, leading to potential inconsistencies batch-to-batch or even during a single production run. For instance, an operator might not react quickly enough to a change in ambient humidity affecting the dew point of incoming air if the furnace has minor leaks.

Modern lines, and indeed many of our AKS Furnace installations, incorporate significantly more sophisticated automation. This typically involves Programmable Logic Controllers (PLCs) or Distributed Control Systems (DCS) that manage multiple parameters simultaneously. This includes multi-zone temperature control with programmed heating and cooling profiles, automated control of protective gas flow rates based on real-time feedback from oxygen, hydrogen, and dew point sensors, and precise control over strip/wire speed and tension. For example, a client producing precision stainless steel strips for electronic components needed extremely tight control over the final temper. By implementing a system with load cells providing feedback for tension control and integrated speed regulation tied to the furnace temperature profile, they were able to achieve a level of consistency previously unattainable.

Real-time monitoring and data logging are also becoming increasingly standard. SCADA (Supervisory Control and Data Acquisition) systems provide operators with a comprehensive overview of the process, trend critical parameters, and generate alarms for out-of-spec conditions. This data is invaluable not only for quality assurance and traceability (crucial for automotive or aerospace suppliers) but also for process optimization and troubleshooting. A small stainless steel wire producer in India, one of our clients, initially struggled with inconsistent tensile strength. After we helped them upgrade their monitoring to include continuous dew point and hydrogen percentage logging, they were able to correlate variations with subtle atmospheric fluctuations and stabilize their process, reducing variations by over 50%. While the adoption of full Industry 4.0 capabilities (like AI-driven predictive maintenance) is still emerging in this specific niche, the trend towards greater automation and data-rich environments is undeniable and essential for achieving the high standards demanded by today's markets.

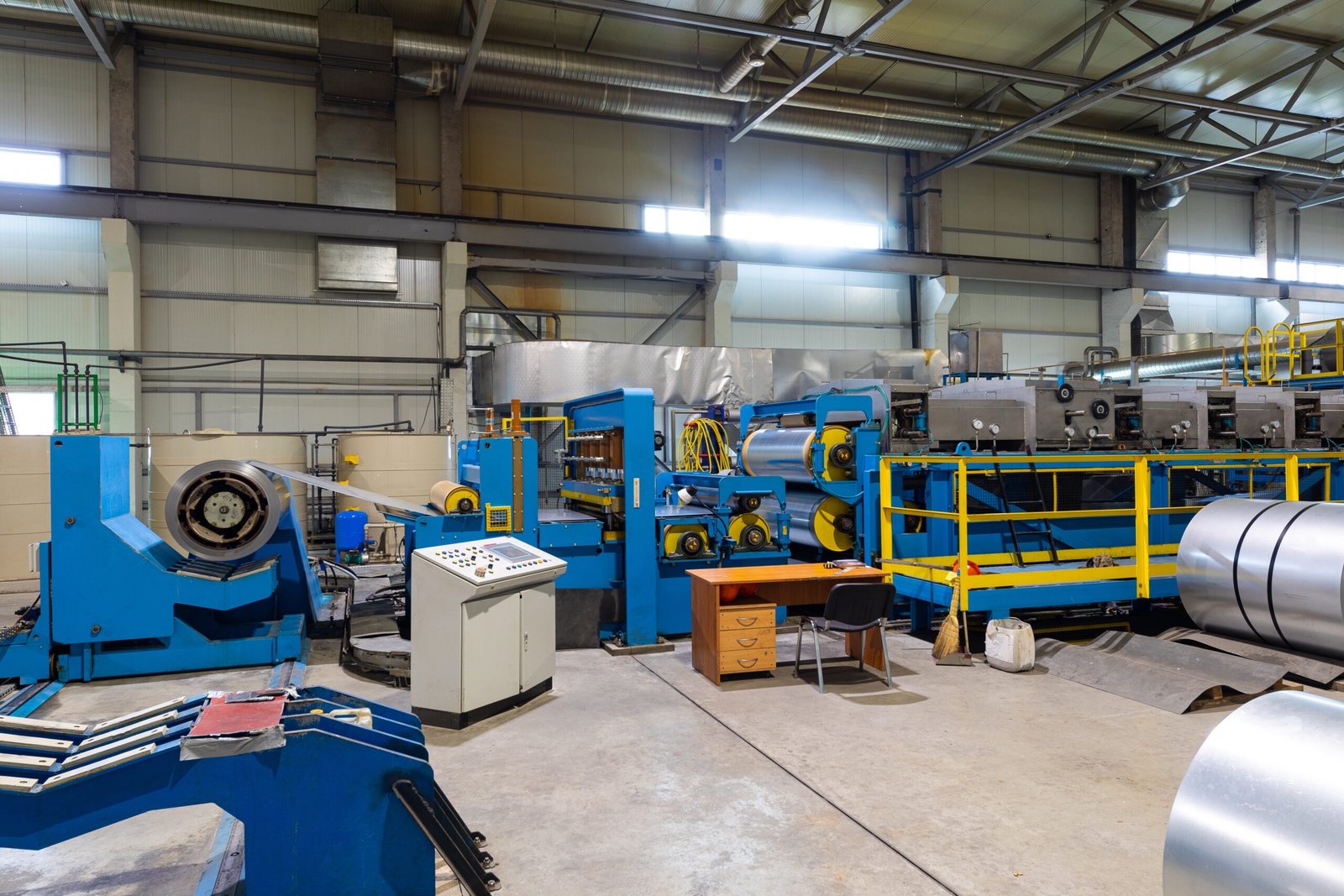

What challenges are commonly faced in conventional bright annealing setups?

Operating conventional bright annealing setups often feels like a constant battle against inherent limitations. These issues can directly translate into compromised product quality, inflated energy expenditures, and frustrating, costly production interruptions. Identifying these common challenges clearly is the crucial first step toward recognizing the need for and benefits of effective, modern solutions.

Common challenges in conventional bright annealing include inconsistent surface brightness and defects, high energy consumption due to poor insulation or inefficient heating, difficulty in consistently maintaining protective atmosphere purity and dew point, frequent muffle or heating element failures, and limited process control, leading to variable product quality.

These challenges are not just minor annoyances; they can significantly impact a manufacturer's bottom line and reputation. For instance, at AKS Furnaces, we often consult with companies struggling to meet the increasingly stringent surface finish requirements for automotive bright trim or high-purity copper wire for electronics. An older furnace might produce acceptable results one day and oxidized or discolored material the next, leading to high scrap rates and urgent reprocessing needs. The energy costs associated with poorly insulated or inefficiently heated furnaces can be staggering, especially with rising energy prices. Moreover, the maintenance burden of constantly replacing degraded muffles, burnt-out heating elements, or dealing with atmosphere leaks eats into valuable production time and maintenance budgets. These are precisely the pain points that modern furnace designs and control systems aim to alleviate, offering a pathway to more predictable, efficient, and high-quality bright annealing operations. Addressing these challenges head-on is essential for any manufacturer looking to stay competitive.

Navigating the operational landscape of conventional bright annealing setups often involves confronting a series of recurring obstacles. From my perspective at AKS Furnaces², where we specialize in providing advanced thermal processing solutions, these challenges are all too familiar to many in the strip and wire industry. They are not just technical issues but also business concerns that affect productivity, profitability, and customer satisfaction. The core function of bright annealing is to relieve stresses, recrystallize grain structures, and achieve a specific surface finish without oxidation. However, older or less sophisticated equipment can make achieving these goals consistently a difficult endeavor. Issues often compound; for example, poor temperature uniformity can lead to inconsistent metallurgical properties, while inadequate atmosphere control results in surface defects. These problems are often interconnected, requiring a holistic approach to diagnosis and resolution. Manufacturers might find themselves in a reactive mode, constantly firefighting issues rather from proactively optimizing their process. This is where a thorough understanding of these common pitfalls becomes invaluable, as it lays the groundwork for strategic improvements and the adoption of technologies that can provide long-term stability and performance. The goal is to move from a state of managing problems to one of mastering the process.

Inconsistent Product Quality and Surface Defects

One of the most visible and costly challenges is the inconsistency in product quality, particularly concerning surface appearance and metallurgical properties. Oxidation, discoloration (e.g., "blueing" or "browning"), and uneven surface brightness are common defects that lead to product rejection or rework. I recall a client, a manufacturer of stainless steel kitchenware components, who was plagued by intermittent dull patches on their annealed strips. This necessitated costly and time-consuming secondary polishing operations. The root causes are often multifaceted: leaks in the furnace casing or seals allowing air (oxygen and moisture) ingress, insufficient protective gas flow, incorrect dew point of the atmosphere (too high), or temperature fluctuations that push parts of the material outside the optimal bright annealing window. For materials like high-chromium stainless steels, even trace amounts of oxygen or moisture at elevated temperatures can lead to the formation of chromium oxides, dulling the surface. Research indicates that for 304 stainless steel³, maintaining an oxygen partial pressure below 10^-18 atm and a dew point below -40°C is often necessary for a truly bright finish. Older furnaces, with deteriorating seals and less precise atmosphere control systems, struggle to maintain such conditions consistently.

Beyond surface appearance, inconsistent annealing can lead to variations in mechanical properties such as hardness, tensile strength, and ductility. If temperature distribution within the furnace is not uniform, some parts of the strip or wire may be over-annealed (too soft, large grain size) while others are under-annealed (too hard, incomplete recrystallization). This is particularly problematic for applications with tight mechanical specifications. For example, an aluminum strip manufacturer, another company we assisted, faced issues with "streaking" or cloudy patches on their bright annealed aluminum foil, which was traced back to poor atmosphere circulation and localized temperature variations within their aging furnace. This resulted in rejection rates of around 7% for their premium products, a significant loss. Addressing these quality issues often requires a deep dive into furnace integrity, atmosphere generation and delivery, and temperature control systems.

The impact of these defects extends beyond the immediate cost of scrap or rework. They can damage a company's reputation, lead to lost orders, and strain customer relationships. In today's competitive market, consistency is key, and conventional setups often make this a constant struggle. The focus of modern furnace design, like those we build at AKS, is to engineer out these variabilities through better sealing, advanced sensor technology, and more uniform heating and cooling.

High Energy Consumption and Operational Costs

Energy is a major operational cost in any heat treatment process, and bright annealing is no exception. Conventional and older furnaces are frequently notorious for their high energy consumption. This can be attributed to several factors: outdated or degraded insulation materials (e.g., traditional refractory bricks that absorb and lose significant heat), inefficient heating element designs or materials that don't convert electrical energy to heat optimally, and significant heat losses through furnace walls, doors, and openings. I've audited lines where the external shell temperature of the furnace was excessively high, indicating substantial heat leakage into the surrounding environment – essentially wasted energy. For instance, studies comparing older refractory-lined furnaces with modern ceramic fiber-lined units have shown potential energy savings of 15-30% or even more, simply due to the lower thermal mass and superior insulating properties of ceramic fibers. A typical older continuous bright annealing line for stainless steel strip might consume 400-600 kWh per ton, whereas a modern, well-optimized line could bring this down to 250-350 kWh per ton.

Beyond the direct energy cost for heating, excessive protective gas consumption also inflates operational costs. This is often due to furnace leaks, inefficient purging cycles, or a lack of precise flow control. If a furnace isn't gas-tight, operators may compensate by increasing the gas flow rate far beyond what is theoretically needed, just to maintain a positive pressure and try to keep air out. This is a costly workaround. Our AKS Bright Annealing Furnaces, for example, are designed with advanced sealing systems and often incorporate options for atmosphere recirculation and purification, which can drastically reduce gas consumption, especially for expensive gases like hydrogen.

Maintenance costs also contribute significantly to the overall operational expenditure of conventional setups. The frequent need to repair or replace components like deteriorating muffles, burnt-out heating elements, or failing thermocouples not only incurs material and labor costs but also leads to non-productive downtime. A detailed cost breakdown for an older annealing line often reveals that energy and maintenance make up a surprisingly large portion of the per-unit processing cost. For example, a copper strip mill operating a 20-year-old muffle furnace reported that their annual muffle replacement and associated maintenance accounted for nearly 20% of their direct annealing operational costs, not including lost production.

Maintenance and Reliability Issues

Maintenance and reliability are persistent headaches with many conventional bright annealing setups. The harsh operating environment—high temperatures, specific atmospheres, and continuous operation—takes its toll on furnace components. Muffle degradation is a classic example. Metallic muffles, especially in older designs or those made from less-than-optimal alloys, are prone to creep, distortion, cracking, and oxidation/corrosion, particularly at weld joints. Their replacement is a costly and time-consuming affair, often involving significant furnace cooldown and reheat periods, leading to substantial production losses. I recall a client who budgeted for a muffle replacement every 18-24 months on their old furnace, viewing it as an unavoidable cost of doing business until they saw the longevity achievable with newer designs and materials.

Heating elements are another common failure point. Older element designs or materials may not have the lifespan of modern high-performance alloys (e.g., Kanthal APM, FeCrAl alloys). Issues like localized overheating, element sagging or shorting, and premature burnout are frequent. Thermocouples, critical for temperature measurement and control, can also drift or fail, leading to inaccurate readings and potentially damaging the product or the furnace itself if temperatures go out of specification. The reliability of ancillary systems like drive motors, rollers, seals, and atmosphere circulation fans can also be a concern in older equipment.

The consequence of these reliability issues is significant unplanned downtime, which disrupts production schedules, delays customer deliveries, and reduces overall equipment effectiveness (OEE). Furthermore, for very old equipment, sourcing specific spare parts can become a challenge, leading to even longer downtimes or forcing costly custom fabrications. A wire annealing plant we consulted with was experiencing an average of 10 hours of unscheduled downtime per month due to various failures on their decades-old furnace line, severely impacting their ability to meet demand from the fastener industry. Addressing these maintenance and reliability challenges often requires a shift towards more robust furnace designs, higher quality components, and the implementation of proactive and predictive maintenance strategies, which are hallmarks of modern annealing solutions like those offered by AKS Furnaces.

Issue	Conventional Challenge	Modern Solution Approach by AKS Furnaces & Industry
Muffle Degradation	Frequent cracking, warping, short lifespan, high replacement cost	Advanced high-temperature alloy muffles, muffle-less designs (radiant tube/direct electric), improved structural support, ceramic fiber modules.
Heating Element Failure	Premature burnout, sagging, uneven heating, inefficient	High-quality elements (e.g., Kanthal APM/AF, silicon carbide), optimized element design for uniform heat distribution, predictive current monitoring.
Atmosphere Leaks	Poor sealing at doors, flanges, sensor ports; material degradation	Enhanced furnace casing integrity, multi-stage sealing systems (e.g., fiber curtains, labyrinth seals), positive pressure control, automated leak detection systems.
Temperature Inconsistency	Basic on/off or PID controllers, sensor drift, poor insulation	Multi-zone PID control with cascaded logic, high-accuracy/low-drift thermocouples, advanced ceramic fiber insulation, thermal modeling for optimal sensor placement.
High Gas Consumption	Leaks, inefficient purging, lack of precise flow control	Gas-tight construction, optimized purging sequences, mass flow controllers, real-time atmosphere analysis with feedback control, gas recirculation/recovery systems.
Excessive Downtime	Reactive maintenance, component failures, long repair times	Modular design for easier component replacement, predictive maintenance sensors (vibration, current), robust component selection, comprehensive spare parts support.

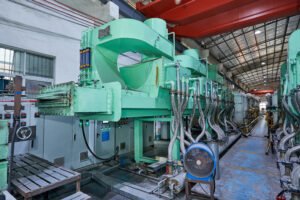

How can technological advancements address these challenges effectively?

Feeling overwhelmed by the persistent challenges of your conventional bright annealing setup? Ignoring the significant strides made in furnace technology means missing out on powerful solutions that can directly translate into superior product quality, drastically improved energy efficiency, and substantial cost savings, giving you a competitive edge.

Technological advancements effectively address bright annealing challenges through innovative furnace designs with superior insulation and heat transfer, advanced atmosphere control systems incorporating real-time sensors, precise multi-zone temperature regulation with sophisticated algorithms, and integrated automation and data analytics for optimized and consistent operations.

At AKS Furnaces, we're at the forefront of integrating these advancements into our bright annealing solutions. I've personally witnessed how a new muffle-less furnace with ceramic fiber insulation and an automated hydrogen-nitrogen atmosphere system can transform a struggling operation into a highly efficient one. For instance, a client producing stainless steel tubes for the automotive sector was battling high reject rates due to surface inconsistencies and excessive energy costs. By upgrading to one of our modern bright annealing furnaces featuring multi-zone temperature control and a precision dew point monitoring system, they not only achieved a near-perfect surface finish consistently but also reported a 25% reduction in gas consumption and a 20% drop in electricity usage per ton of processed material. These aren't just incremental improvements; they are game-changers that enhance both product quality and the bottom line, demonstrating the tangible benefits of embracing modern technology.

The evolution of bright annealing technology offers robust answers to the longstanding challenges faced by strip and wire manufacturers. As someone deeply involved in the design and implementation of these advanced systems at AKS Furnaces, I've seen firsthand the transformative impact they can have. It's no longer just about heating metal in a controlled atmosphere; it's about precision engineering, intelligent control, and sustainable operation⁴. The goal of these technological strides is to provide manufacturers with tools that are not only more efficient and reliable but also more adaptable to the diverse and demanding requirements of modern materials and markets. From the fundamental construction of the furnace to the sophisticated algorithms managing its operation, every aspect has seen innovation. This progress directly counters issues like inconsistent quality, high energy use, and frequent maintenance by building in solutions at a foundational level. For example, the shift from heavy refractory linings to lightweight ceramic fiber insulation isn't just a material change; it's a paradigm shift that affects heating/cooling rates, energy consumption, and even the furnace footprint. Similarly, the integration of smart sensors and PLC-based controls moves operations from reactive adjustments to proactive, data-driven management, which is crucial for achieving the Six Sigma quality levels many industries now expect.

Advanced Furnace Designs and Materials

One of the most significant areas of advancement is in the fundamental design of the annealing furnace itself and the materials used in its construction. As I mentioned earlier, muffle-less designs, which AKS Furnaces champions for many applications, represent a major step forward. By eliminating the traditional metallic muffle, these furnaces, whether employing high-performance radiant tubes or advanced direct electrical heating elements, offer several advantages. They typically exhibit better thermal efficiency because heat is transferred more directly to the product. Maintenance is also simplified and less costly, as there's no muffle to periodically inspect, repair, or replace – a common and expensive pain point with older muffle-type furnaces. For example, a client processing specialized alloy wires, who switched to our muffle-less design, reported a 70% reduction in maintenance downtime previously associated with muffle issues. The furnace uptime increased significantly, directly boosting their production capacity without adding a new line.

The choice of insulation materials is another critical innovation. Modern bright annealing furnaces increasingly utilize advanced ceramic fiber modules and boards instead of, or in combination with, traditional refractory bricks. Ceramic fibers offer significantly lower thermal conductivity and much lower thermal mass. This means less heat is lost through the furnace walls, leading to substantial energy savings – often in the range of 15-25% compared to conventionally insulated furnaces of similar capacity. Furthermore, the low thermal mass allows for faster heat-up and cool-down cycles, increasing furnace availability and flexibility, particularly for job shops or manufacturers with varied production schedules. I recall a specific project for a carbon steel strip processor where retrofitting their existing furnace chamber with modern ceramic fiber lining, a service we also consult on, resulted in a measurable 18% decrease in their natural gas consumption for the heating zones.

High-performance heating elements and radiant tubes also play a vital role. Materials like silicon carbide (SiC) or advanced iron-chromium-aluminum (FeCrAl) alloys (such as Kanthal APM or similar) for electric heating elements offer longer service life at high temperatures, better resistance to corrosive atmospheres, and more stable electrical properties. For gas-fired radiant tubes, improved alloy compositions and manufacturing techniques lead to tubes that can withstand higher temperatures and thermal cycling with greater reliability, ensuring more uniform heat distribution and extended operational campaigns. This focus on material science directly translates to furnaces that are not only more energy-efficient but also more durable and reliable in demanding industrial environments.

Precision Atmosphere and Temperature Control Systems

The ability to precisely control the furnace atmosphere and temperature profile is paramount for achieving consistent, high-quality bright annealing results, and this is where technological advancements have delivered remarkable improvements. Modern systems move far beyond simple manual adjustments and basic controllers. For atmosphere control, the integration of real-time gas analyzers is a game-changer. Sensors for oxygen (often zirconia-based), hydrogen, and dew point (using chilled mirror, capacitive, or other technologies) continuously monitor the conditions inside the furnace. This data is fed back to the PLC or control system, which can then automatically adjust the flow rates of protective gases (e.g., nitrogen, hydrogen) using precision mass flow controllers or control valves. This closed-loop control ensures that the desired atmosphere composition and purity are maintained despite variations in gas supply, minor leaks, or changes in product load. For instance, a client annealing high-nickel alloy strips for aerospace applications, a very sensitive material, uses one of our AKS furnaces equipped with a dew point sensor that maintains moisture levels below -60°C. This precise control has virtually eliminated surface oxidation issues they previously faced. Such systems also optimize gas consumption, purging only when necessary and using the minimum flow required to maintain conditions, leading to significant cost savings on gases like hydrogen.

Temperature control has become equally sophisticated. Instead of single-zone control, modern continuous furnaces typically feature multiple, independently controlled heating and cooling zones. Each zone is equipped with accurate thermocouples (often Type K, N, or S, depending on the temperature range) and managed by advanced Proportional-Integral-Derivative (PID) controllers, often embedded within the PLC. These controllers can execute complex temperature profiles, ensuring the strip or wire is heated, soaked, and cooled at the precise rates required for the specific alloy and desired metallurgical properties. This multi-zone approach ensures excellent temperature uniformity across the width of the strip and along the length of the heating chamber. For example, annealing certain grades of stainless steel requires rapid cooling through specific temperature ranges to avoid sensitization. Modern furnaces can achieve this with controlled high-convection jet cooling zones, precisely managed by the PLC. Data from research, such as studies on the annealing of austenitic stainless steels, shows that controlling cooling rates can improve corrosion resistance by 15-20% by preventing chromium carbide precipitation.

The algorithms within these control systems are also becoming more intelligent, capable of self-tuning PID parameters or adapting to changing load conditions to maintain optimal performance. This level of precision was unimaginable with older, manually intensive systems and is fundamental to meeting the tight tolerances demanded by industries like automotive, electronics, and medical devices.

Automation, Data Logging, and Predictive Maintenance

The integration of comprehensive automation, robust data logging, and emerging predictive maintenance capabilities represents a third pillar of technological advancement in bright annealing. PLC/SCADA systems are now standard in new, high-performance lines, providing centralized control and monitoring of the entire annealing process. From a single HMI (Human-Machine Interface), operators can set recipes for different products, oversee all critical parameters (temperatures, gas flows, dew point, strip speed, tension), and respond to alarms. This level of automation reduces reliance on manual intervention, minimizing the risk of human error and ensuring process repeatability. I remember visiting an automotive parts manufacturer who had recently installed a new bright annealing line for stainless steel exhaust components. Their SCADA system not only controlled the furnace but also integrated with their production scheduling system, automatically loading the correct annealing recipe when a new job was started. This significantly reduced setup times and eliminated errors caused by incorrect parameter entry.

Comprehensive data logging is an integral part of modern automation. All critical process parameters are continuously recorded and stored, creating a detailed historical record for each coil or batch processed. This data is invaluable for quality assurance, allowing manufacturers to provide traceability and certification to their customers. It's also a powerful tool for process optimization and troubleshooting. If a quality issue arises, engineers can analyze the historical data to identify correlations and pinpoint root causes. For example, a client producing fine copper wire used their data logs to discover that slight variations in their hydrogen inlet pressure were subtly affecting the final surface brightness on very thin gauges. Adjusting their gas supply regulation based on this data resolved the issue.

Predictive maintenance capabilities, while still evolving, are beginning to be incorporated. By monitoring parameters like heating element current draw, motor vibration signatures, bearing temperatures, or gas consumption trends, the system can identify early warning signs of potential component failure. For instance, a gradual increase in the current required by a heating element zone might indicate element degradation, allowing maintenance to be scheduled proactively before an outright failure causes an unplanned shutdown. Research in industrial maintenance shows that predictive strategies can reduce downtime by up to 50% and maintenance costs by 25-30% compared to reactive approaches. While not yet universally adopted in all bright annealing furnaces, the infrastructure of sensors and data logging in modern systems lays the groundwork for these advanced maintenance strategies.

Parameter	Manual Control Challenge in Conventional Setups	Automated Control Benefit in Modern AKS Furnaces
Temperature Profile	Fluctuations due to manual adjustment, operator dependency, slow response to changes	Precise, repeatable multi-zone PID control, recipe management, adaptive algorithms
Atmosphere Composition	Manual valve adjustment, periodic spot checks, inconsistent purity/dew point	Real-time sensors (O2, H2, dew point), closed-loop control of gas flow, consistent purity
Protective Gas Flow	Often excessive to compensate for leaks, wasteful, manual purging sequences	Optimized flow rates based on demand, leak compensation (to an extent), automated purging
Strip/Wire Tension	Inconsistent tension leading to stretching, breakage, or tracking issues	Automatic tension control using load cells/dancers, consistent product geometry
Data Recording	Manual logs, often incomplete or prone to error, difficult to analyze	Continuous, accurate digital logging of all critical parameters, easy retrieval & analysis
Fault Diagnosis	Time-consuming, reliant on operator experience	Alarm history, trend analysis, potential for guided troubleshooting or remote diagnostics

What are key upgrade strategies for enhancing bright annealing efficiency?

Manufacturers often find themselves at a crossroads, wondering about the most effective path to upgrade their existing bright annealing lines for better efficiency. Adopting a haphazard approach can lead to misallocated investments and only marginal gains, causing further frustration. A well-thought-out, strategic upgrade plan focusing on high-impact areas is essential to significantly enhance operational efficiency and maximize return on investment.

Key upgrade strategies for enhancing bright annealing efficiency include retrofitting with energy-efficient heating systems and improved insulation, implementing advanced atmosphere generation and control systems, automating critical process parameters for consistency, and integrating heat recovery systems to minimize energy waste and reduce overall operational costs.

At AKS Furnaces, we frequently guide clients through this strategic process. It's not always about a complete overhaul; sometimes, targeted upgrades can yield substantial improvements. For example, one of our clients, a mid-sized carbon steel strip processor, was facing high energy bills with an otherwise mechanically sound furnace. We recommended a phased upgrade focusing initially on relining the furnace with modern ceramic fiber insulation and upgrading their combustion system with more efficient burners and controls. This relatively focused investment led to a verified 22% reduction in their fuel consumption, providing a quick ROI and freeing up capital for later upgrades to their atmosphere control system. This highlights how understanding the specific bottlenecks and prioritizing upgrades can lead to impactful and economically sensible improvements in bright annealing efficiency, transforming an underperforming asset into a more competitive one.

Enhancing the efficiency of bright annealing operations through strategic upgrades is a critical endeavor for any strip and wire manufacturer aiming to improve their bottom line and product quality. As we at AKS Furnaces often advise, it’s about making smart choices that deliver the most significant impact. An "efficient" bright annealing line is one that minimizes energy consumption per unit of product⁵, maximizes throughput of quality material, reduces protective gas usage, and operates with high reliability and minimal downtime. Achieving this often requires a multi-faceted approach, considering not just the furnace itself but also the ancillary systems and operational practices. The key is to move beyond simply replacing old parts with new ones and instead to fundamentally re-evaluate how each component and subsystem contributes to overall process effectiveness. This might involve adopting new technologies, reconfiguring existing layouts, or implementing more sophisticated control philosophies. The strategies discussed below focus on creating a more integrated, responsive, and resource-conscious bright annealing process, ultimately leading to a more sustainable and profitable operation.

Phased vs. Full Line Replacement: A Cost-Benefit Analysis

One of the first strategic decisions a manufacturer faces is whether to undertake a phased upgrade of their existing bright annealing line or opt for a complete replacement. Each approach has its own set of costs, benefits, and risks. A phased upgrade involves identifying specific components or subsystems of the existing line that are underperforming or outdated (e.g., insulation, heating elements, atmosphere control) and replacing or retrofitting them incrementally. The primary benefit here is often a lower initial capital outlay per phase, making it more manageable for companies with tighter budgets. It can also lead to less disruption to production if upgrades can be scheduled during planned maintenance shutdowns. For example, upgrading the atmosphere control system might be one phase, followed by an insulation retrofit in a subsequent phase. We worked with a medium-sized copper wire producer who chose this path. They first invested in a new nitrogen-hydrogen mixing station and dew point control system from AKS Furnaces for their existing muffle furnace. This immediately improved their surface finish consistency and reduced gas waste. A year later, they undertook a reline of the furnace with modern insulation. This staged approach allowed them to see tangible benefits at each step and manage their cash flow effectively.

However, phased upgrades also have potential drawbacks. Compatibility issues can arise when integrating new technology with older existing equipment. The overall efficiency gain might be limited by the performance of the remaining older components, creating new bottlenecks. For instance, a highly efficient new heating system might not deliver its full potential if the furnace sealing is poor and atmosphere integrity cannot be maintained. There's also the risk that the cumulative cost of multiple phased upgrades over time could approach or even exceed that of a new line, without achieving the same level of holistic performance improvement.

A full line replacement, while requiring a significantly higher upfront investment, offers the opportunity to design a completely optimized system using the latest technologies from the ground up. This can lead to the highest possible efficiency gains, lowest operational costs in the long run, and the ability to incorporate features like advanced automation and data integration seamlessly. It's often the preferred route when the existing line is very old, mechanically unsound, or when a major capacity increase or a significant shift in product requirements (e.g., new alloys, much tighter tolerances) is needed. An export-oriented stainless steel tube manufacturer, a client of ours, opted for a full new bright annealing line when expanding their facility. This allowed them to specify a muffle-less design with full automation and heat recovery, achieving benchmark energy consumption figures and superior product quality that opened up new premium markets for them. A cost-benefit analysis should consider not only the initial investment but also projected operational savings (energy, gas, maintenance, scrap reduction) and the expected lifespan of the upgraded/new equipment to calculate the true ROI. For instance, a phased upgrade might offer an ROI in 1-2 years per phase, while a full line could be 3-5 years but with larger overall savings.

Prioritizing Upgrades: Identifying High-Impact Areas

Whether pursuing a phased approach or looking for specific areas to improve even within a newer line, prioritizing upgrades is crucial for maximizing impact. Not all potential upgrades deliver the same return on investment or the same improvement in efficiency. It's about identifying the "low-hanging fruit" or the areas with the most significant current losses. Energy efficiency is almost always a prime candidate. As discussed, this can involve upgrading insulation to modern ceramic fibers, replacing inefficient heating elements or burners with high-efficiency alternatives, and ensuring all furnace seals and doors are in excellent condition to prevent heat loss and air ingress. Implementing or upgrading heat recovery systems, where the heat from exhaust gases or the cooling product is used to preheat incoming combustion air or the product itself, can also yield substantial energy savings, sometimes up to 15-20% of total energy input.

Atmosphere control is another high-impact area. Investing in accurate real-time sensors for dew point, oxygen, and hydrogen, coupled with automated gas mixing and flow control systems, can drastically reduce protective gas consumption (a major operational cost, especially for hydrogen) and significantly improve product quality and consistency by ensuring optimal atmospheric conditions. For example, a typical bright annealing line might consume 10-20 Nm³/hr of protective gas per tonne of product more than necessary due to inefficient control, which adds up quickly. Upgrading to a system that reduces this by even 25% can lead to thousands of dollars in annual savings. I recall a brass strip annealer who, by installing a simple oxygen sensor and linking it to their nitrogen flow, cut their N2 consumption by 30% while improving brightness.

Process control and automation upgrades also offer substantial benefits. Modernizing temperature control with multi-zone PID systems, implementing PLCs for integrated line management, and adding SCADA for data logging and visualization can lead to more consistent metallurgical properties, reduced operator intervention, quicker troubleshooting, and better overall process stability. Identifying which of these areas will yield the highest return depends on a thorough audit of the existing line's performance and a clear understanding of the primary operational pain points. A simple prioritization matrix, like the one below, can be a useful tool.

Upgrade Area	Potential Impact (Quality/Energy/Cost)	Estimated Investment (High/Med/Low)	Implementation Complexity (High/Med/Low)	Typical ROI Period
Insulation Retrofit (Ceramic Fiber)	High (Energy, Temp. Uniformity)	Medium to High	Medium	1-3 years
Atmosphere Sensors & Auto Control	High (Quality, Gas Cost)	Medium	Medium	1-2 years
High-Efficiency Heating Elements	Medium to High (Energy, Reliability)	Medium	Medium	2-4 years
PLC/SCADA Automation	High (Consistency, Labor, Data)	High	High	2-5 years
Heat Recovery System	Medium to High (Energy)	High	High	3-5+ years
Improved Furnace Sealing	Medium (Quality, Gas Cost, Energy)	Low to Medium	Low to Medium	<1-2 years

Integrating Modern Furnaces into Existing Production Flows

When a decision is made to invest in a new, modern bright annealing furnace, whether as part of a full line replacement or as a standalone upgrade, its seamless integration into the existing production flow is critical for realizing its full benefits. This involves more than just placing the new furnace on the shop floor. My team at AKS Furnaces often works closely with clients on this aspect. Space considerations are paramount. Modern furnaces, while often more compact for their capacity due to better insulation and design, still require adequate footprint, including access for maintenance. The layout must ensure smooth material flow from upstream processes (like rolling, slitting, or cleaning) to the furnace entry, and from the furnace exit to downstream processes (like coiling, cutting, or inspection). We once had a project with a stainless steel strip processor where the available floor space was very constrained. We had to design a custom U-shaped cooling section for their new AKS bright annealing furnace to fit the existing building column layout, without compromising cooling efficiency.

Compatibility with existing upstream and downstream equipment is another key factor. Pay-off and take-up systems must be able to handle the speeds and tensions required by the new furnace. If the new furnace operates at a higher speed, downstream equipment must be able to keep pace to avoid becoming a bottleneck. Entry and exit heights, pass line alignment, and strip/wire guiding systems must be carefully matched. For example, if a new furnace has a more sophisticated tension control system, ensuring the existing pay-off and take-up can respond appropriately is vital. We often find that upgrading the furnace necessitates upgrades to material handling equipment as well to fully leverage the new furnace's capabilities.

Finally, and crucially, personnel must be adequately trained to operate and maintain the new, more technologically advanced equipment. Modern furnaces with PLC/SCADA systems have different operational interfaces and require different skill sets compared to older, manually controlled units. Providing comprehensive training on operation, routine maintenance, troubleshooting, and understanding the data generated by the new system is essential for a smooth transition and for achieving the desired performance levels. We always include a thorough training program with our AKS furnace installations, as we believe an empowered and knowledgeable team is key to long-term operational success. This often includes not just operators but also maintenance staff and process engineers.

What technical recommendations can optimize bright annealing processes?

Achieving truly optimal bright annealing performance extends beyond merely installing new, advanced equipment; it delves into the meticulous fine-tuning of operational parameters. Overlooking crucial technical details or failing to implement best practices can significantly undermine the benefits and efficiency gains anticipated from even the most sophisticated upgrades. Adhering to specific, proven technical recommendations is key to calibrating your bright annealing process for peak results and consistent, high-quality output.

Technical recommendations for optimizing bright annealing processes include meticulous control of protective atmosphere dew point and composition, precise establishment and maintenance of temperature profiles across all heating and cooling zones, proper and dynamic strip or wire tension management, and rigorous, scheduled calibration of all critical sensors and instrumentation.

In my role at AKS Furnaces, I've consistently seen that attention to these technical nuances separates good annealing operations from great ones. For example, a client producing high-grade stainless steel wire for medical applications was experiencing sporadic issues with surface luster despite having a modern furnace. A detailed process audit revealed that while their average dew point was acceptable, transient spikes were occurring during coil changes. By implementing a more aggressive purge cycle triggered automatically during these changes and fine-tuning their hydrogen-to-nitrogen ratio, based on our recommendations, they virtually eliminated the inconsistency. This underscores that continuous optimization based on sound technical principles is an ongoing journey, vital for maximizing the potential of your bright annealing line and ensuring it consistently delivers products that meet the highest standards.

Optimizing bright annealing processes is a continuous endeavor that blends scientific principles with practical engineering. At AKS Furnaces, our experience has shown that even with state-of-the-art equipment, realizing the full potential of a bright annealing line hinges on the meticulous management of several key technical parameters. These recommendations are not just theoretical guidelines; they are actionable strategies that, when implemented correctly, can lead to significant improvements in product quality, energy efficiency, and operational stability. It's about creating a synergistic relationship between the material being processed, the furnace environment, and the control systems. This requires a deep understanding of metallurgy, thermodynamics, and fluid dynamics as they apply to the specific annealing application. The goal is to establish a robust, repeatable process window that consistently delivers the desired outcomes, whether it's a mirror-bright finish on stainless steel strip or specific mechanical properties in alloy wire. The following recommendations delve into the critical aspects that demand precise control and regular attention to achieve and maintain optimal performance.

Optimizing Protective Atmosphere: Dew Point, Composition, and Flow Rates

The protective atmosphere is the lifeblood of the bright annealing process. Its precise control is non-negotiable for achieving a defect-free, bright surface. The dew point⁶ , which is a measure of moisture content in the atmosphere, is arguably the most critical parameter. For most stainless steels, particularly austenitic and ferritic grades, the dew point inside the furnace must be maintained below -40°C (-40°F) to prevent oxidation of chromium and other sensitive alloying elements. For more critical applications or higher chromium alloys, dew points of -50°C to -60°C (-58°F to -76°F) or even lower are often required. I worked with a client producing high-chromium ferritic stainless steel strips for catalytic converter shells. They significantly improved their product's brightness and subsequent corrosion resistance by upgrading their atmosphere system to consistently achieve and monitor a dew point below -55°C within their AKS furnace, using a high-purity nitrogen-hydrogen mix. This often requires high-purity inlet gases, a very gas-tight furnace construction, and potentially in-line gas purifiers or dryers. Regular monitoring with calibrated dew point sensors is essential.

The composition of the protective atmosphere⁷, typically a blend of nitrogen (N2) and hydrogen (H2), or sometimes pure hydrogen or cracked ammonia, must be tailored to the material being annealed. Hydrogen is the active reducing agent, reacting with any surface oxides and preventing further oxidation. The percentage of hydrogen required varies; for example, copper and its alloys can often be bright annealed with relatively low hydrogen percentages (e.g., 2-10% H2 in N2), which is safer and more economical. Stainless steels generally require higher hydrogen concentrations (e.g., 25-75% H2 in N2, or even 100% H2 for some critical grades, though 100% H2 brings significant safety considerations and cost). The key is to provide enough reducing potential without incurring unnecessary gas costs or creating safety hazards. Automated gas mixing stations with mass flow controllers allow for precise and repeatable control of this composition.

Optimizing gas flow rates is also crucial. The flow rate must be sufficient to maintain a positive pressure inside the furnace, preventing air ingress, and to purge any outgassed impurities from the material or furnace lining. However, excessive flow rates waste expensive protective gas and can even, in some muffle-less designs, create undesirable turbulence or affect temperature uniformity. The optimal flow rate depends on furnace volume, sealing effectiveness, product throughput, and the outgassing characteristics of the material being processed. It’s often determined empirically and then programmed into the control system, with adjustments possible based on real-time atmosphere analysis. Some advanced systems can dynamically adjust flow rates based on oxygen or dew point readings, minimizing consumption while ensuring protection. For instance, research by ASM International suggests that maintaining a slight positive pressure of 0.5 to 1.0 inch water column (125-250 Pa) is typically sufficient for well-sealed continuous furnaces.

Fine-Tuning Temperature Profiles and Strip/Wire Tension Control

The temperature profile—how the material is heated, soaked at temperature, and cooled—is fundamental to achieving the desired metallurgical properties (e.g., grain size, hardness, ductility) and surface brightness. Developing optimal heating and cooling curves for each specific alloy, thickness, and desired outcome is essential. This involves defining target temperatures for multiple zones within the furnace, ramp rates (how quickly temperature changes), and soak times (how long the material is held at the peak annealing temperature). For example, 304 stainless steel is typically annealed between 1040°C and 1150°C (1900°F and 2100°F). The soak time at this temperature will depend on the strip thickness and line speed, ensuring complete recrystallization. The cooling rate is also critical; for austenitic stainless steels, rapid cooling (quenching) through the sensitization range (approx. 870°C to 425°C or 1600°F to 800°F) is necessary to prevent chromium carbide precipitation at grain boundaries, which would impair corrosion resistance. Our AKS Bright Annealing Furnaces often incorporate high-convection jet cooling zones using recirculated protective gas to achieve these rapid and controlled cooling rates.

Uniform temperature distribution across the width of the strip and along its length within each control zone is vital. Non-uniformity can lead to inconsistent properties and stresses in the material. This is achieved through careful furnace design, strategic placement of heating elements or radiant tubes, effective atmosphere circulation (if applicable), and precise multi-zone PID control. Regular temperature uniformity surveys (TUS) using trailing thermocouples or other methods, as per standards like AMS2750 for aerospace applications, can verify and help optimize this.

Managing strip or wire tension throughout the annealing line is another critical technical aspect. Incorrect tension can lead to various problems: excessive tension can cause stretching, necking (reduction in cross-section), or even breakage, especially when the material is hot and its yield strength is low. Insufficient tension can lead to tracking issues, buckling, or inconsistent contact with drive/guiding rollers, potentially causing surface scratches or affecting heat transfer. Modern annealing lines incorporate sophisticated tension control systems, often using load cells or dancer rolls to provide feedback to variable speed drives on pay-off, take-up, and intermediate bridle rolls. These systems can maintain a precise, programmed tension profile throughout the line, compensating for changes in coil diameter or minor speed fluctuations. For thin gauge or delicate materials, this precise tension control is absolutely critical for producing high-quality, defect-free product.

Zone Stage	Material Example (304 Stainless Steel Strip - 0.5mm thick)	Target Temp. Range	Purpose	Key Control Focus	Typical Residence Time (example)
Entry/Pre-heat	Ambient to 600-800°C (1112-1472°F)	Gradual ramp-up	Remove residual moisture/volatiles, reduce thermal shock to strip/furnace	Controlled heating rate, prevent overheating of entry seals	30-60 seconds
Heating	600-800°C to 1050-1120°C (1472°F to 1922-2048°F)	Precise ramp-up	Raise material to annealing (recrystallization) temperature uniformly	Temperature uniformity across strip width, accurate ramp rate	60-90 seconds
Soaking	Hold at 1050-1120°C (1922-2048°F)	Stable hold	Ensure complete recrystallization, grain growth control, solutionize carbides	Precise temperature stability (±5-10°C), uniformity	60-120 seconds (thickness dependent)
Controlled Cool	1050-1120°C down to ~600°C (1112°F)	Moderate cool rate	Initial cooling, prepare for rapid quench (avoid sensitization range if needed)	Controlled cooling rate, prevent distortion	30-60 seconds
Rapid Quench	~600°C down to <100-150°C (212-302°F)	Fast cooling	Achieve bright surface, prevent re-oxidation, lock in microstructure	High cooling rate (jet cooling), maintain protective atmosphere	45-90 seconds

Implementing Robust Maintenance and Calibration Schedules

Even the most advanced bright annealing line will not perform optimally over time without a robust maintenance and calibration schedule. Preventive and predictive maintenance practices are key to ensuring long-term reliability, efficiency, and consistent product quality. This starts with regular inspections of all critical furnace components. For the furnace itself, this includes checking the integrity of the casing, insulation (looking for hot spots or degradation), seals (at doors, entry/exit points, sensor ports), heating elements or radiant tubes (for signs of wear, distortion, or imminent failure), and the muffle (if applicable, for cracks or warping). Rollers, bearings, and drive systems within the line also require regular lubrication and inspection. At AKS Furnaces, we provide detailed maintenance guidelines with all our equipment, emphasizing these checks.

Calibration is particularly crucial for all instrumentation that influences process control and quality. Thermocouples, which measure temperature, can drift over time due to exposure to high temperatures and furnace atmospheres. They should be calibrated or checked against a reference standard periodically (e.g., every 3-6 months, or as defined by quality standards like AMS2750). Gas analyzers (for O2, H2, dew point) are also critical and require regular calibration according to manufacturer recommendations to ensure accurate atmosphere monitoring and control. Mass flow controllers for gases, pressure sensors, and tension measurement devices (load cells) should also be part of the calibration schedule. Failure to maintain calibration can lead to out-of-spec processing, resulting in rejected product or inefficient operation. I recall an electronics component manufacturer, a client, who traced an intermittent annealing issue back to a dew point sensor that had drifted significantly out of calibration, leading to higher-than-indicated moisture levels in their furnace. Implementing a stricter calibration routine resolved the problem.

Keeping detailed maintenance and calibration logs is essential. These records provide a history of the equipment's performance, help identify recurring problems, and are often required for quality audits (e.g., ISO 9001). They also aid in planning future maintenance activities and spare parts inventory. A well-documented maintenance program, shifting from reactive (fixing things when they break) to proactive (preventing failures), is a hallmark of an optimized and efficiently run bright annealing operation. This discipline ensures that the technological advantages built into the furnace are sustained throughout its operational life.

Conclusion

Upgrading your bright annealing line with modern technology and optimized processes is essential for enhancing strip and wire quality, boosting energy efficiency, and maintaining competitiveness. Strategic investments in furnace design, atmosphere control, and automation deliver significant returns and secure future operational excellence for your business.
